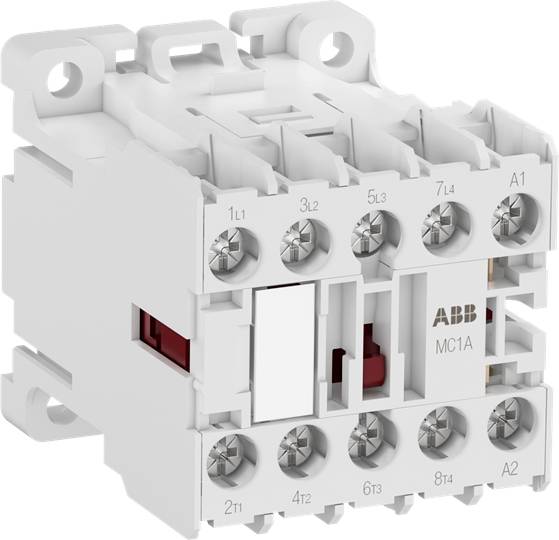

ABB MC1A400AT6 Mini contactor 4 makers 4 kW Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Mini contactor
No. of pins
4-pin
Power
4 kW
Connection
Screws
Packaging type
Piece
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Mini contactor
- Type
MC1A400AT6
- No. of pins
4-pin
- Contact type
4 makers
- Auxiliary contact type
4 makers
- Control voltage (min.)
220 V AC
- Control voltage (max.)
230 V AC
- Control voltage range
220 - 230 V AC
- Permanent current (max.)
20 A
4 kW
- Mounting type
DIN rail
- Connection
Screws
- Content
1 pc(s)
FALSE
4 kW
4
0
0
0
9 A
20 A
220-230 V
220-220 V
Screw connection
AC
9 A
4 kW
2.2371 kW
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3104705 ABB MC1A400AT6 Mini contactor 4 makers 4 kW Piece 1 pc(s)
Description
The MC1A mini-contactor is a size-optimized 4-pin contactor AC-current control and screw connections. It provides the optimum solution when high performance is required but space is limited. These miniature contactors can be used in residential buildings, commercial buildings and many industrial applications to control single or three-phase loads up to 4 kW (AC-3) and 20A (AC-1) at 690 V or to control signals. The contactor is suitable for DIN rail or wall mounting.
