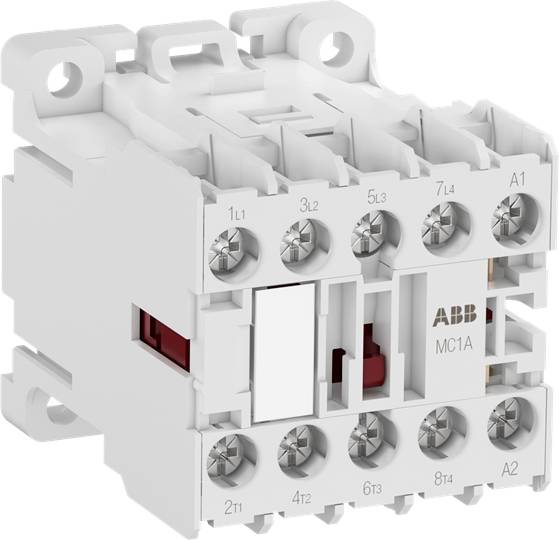

ABB MC1A400ATN Mini contactor 4 makers 4 kW + auxiliary contact Single 1 pc(s)
EAN:
Part number:
Item no:
Product type
Mini contactor
No. of pins
4-pin
Power
4 kW
Connection
Screws
Packaging type
Single
Datasheet (PDF)
Technical specifications
- Packaging type
Single
- Product type
Mini contactor
- Type
MC1A400ATN
- No. of pins
4-pin
- Contact type
4 makers
- Auxiliary contact type
4 makers
- Control voltage (min.)
220 V AC
- Control voltage (max.)
277 V AC
- Control voltage range
220 - 277 V AC
- Switching voltage (max.)
690 V AC
- Permanent current (max.)
20 A
4 kW
- Features
+ auxiliary contact
- Mounting type
DIN rail
- Connection
Screws
- Content
1 pc(s)
FALSE
4 kW
4
0
0
0
9 A
20 A
220-277 V
220-220 V
Screw connection
AC
9 A
4 kW
2.2371 kW
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3104554 ABB MC1A400ATN Mini contactor 4 makers 4 kW + auxiliary contact Single 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3104554 ABB MC1A400ATN Mini contactor 4 makers 4 kW + auxiliary contact Single 1 pc(s)
Description
The MC1A small contactor is a size-optimized 4-pin contactor with AC control and screw connections. It provides the optimum solution when high performance is required but space is limited. These miniature contactors can be used in residential buildings, commercial buildings and many industrial applications to control single- or multi-phase loads up to 4kW (AC3) or 20 A (AC-1) at 690 V or for control signals. In addition, up to 6 additional auxiliary contacts can be mounted on the front or side. The contactor is suitable for DIN rail or wall mounting.
This text is machine translated.
This text is machine translated.
