ABB MC1A400ATU Mini contactor 4 makers 4 kW 1 pc(s)
EAN:
Part number:
Item no:
Product type
Mini contactor
No. of pins
4-pin
Power
4 kW
Connection
Screws
Type
MC1A400ATU
Datasheet (PDF)
Technical specifications
- Product type
Mini contactor
- Type
MC1A400ATU
- No. of pins
4-pin
- Contact type
4 makers
- Auxiliary contact type
4 makers
- Control voltage (min.)
380 V AC
- Control voltage (max.)
440 V AC
- Control voltage range
380 - 440 V AC
- Switching voltage (max.)
690 V AC
- Permanent current (max.)
20 A
4 kW
- Mounting type
DIN rail
- Connection
Screws
- Content
1 pc(s)
FALSE
4 kW
4
0
0
0
9 A
20 A
380-440 V
380-380 V
Screw connection
AC
9 A
4 kW
2.2371 kW
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3104555 ABB MC1A400ATU Mini contactor 4 makers 4 kW 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3104555 ABB MC1A400ATU Mini contactor 4 makers 4 kW 1 pc(s)
Description

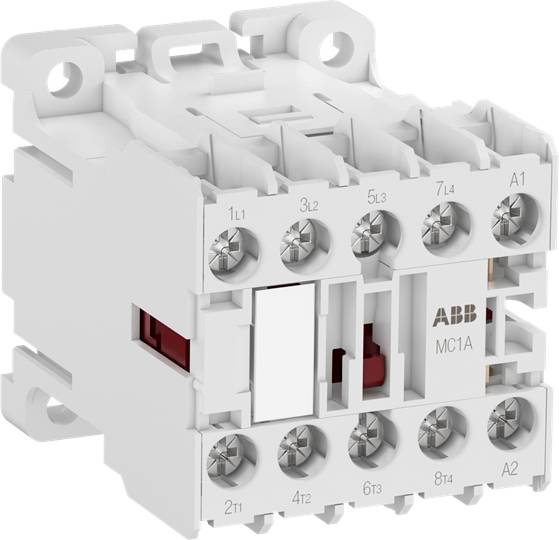

The MC1A small contactor is a size-optimized 4-pin contactor with AC control and screw connections. It provides the optimum solution when high performance is required but space is limited. These miniature contactors can be used in residential buildings, commercial buildings and many industrial applications to control single- or multi-phase loads up to 4kW (AC3) or 20 A (AC-1) at 690 V or for control signals. In addition, up to 6 additional auxiliary contacts can be mounted on the front or side. The contactor is suitable for DIN rail or wall mounting.
