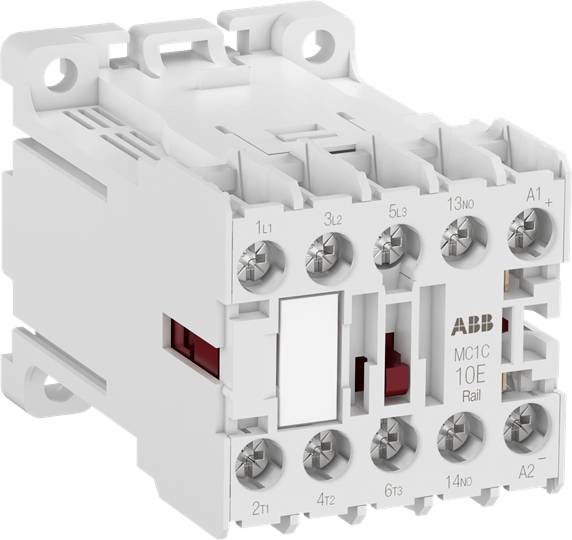

ABB MC1C301ATWDD-RAIL Mini contactor 3 makers, 1 breaker 4 kW + auxiliary contact Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Mini contactor
No. of pins
3-pin
Power
4 kW
Connection
Screws
Packaging type
Piece
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Mini contactor
- Type
MC1C301ATWDD-RAIL
- No. of pins
3-pin
- Contact type
3 makers
1 breaker
- Control voltage (min.)
17 V DC
- Control voltage (max.)
30 V DC
- Control voltage range
17 - 30 V DC
- Switching voltage (max.)
690 V DC/AC
- Permanent current (max.)
20 A
4 kW
- Features
+ auxiliary contact
- Mounting type
DIN rail
- Connection
Screws
- Content
1 pc(s)
FALSE
4 kW
3
0
0
1
9 A
20 A
17-30 V
Screw connection
DC
9 A
4 kW
2.2371 kW
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3104773 ABB MC1C301ATWDD-RAIL Mini contactor 3 makers, 1 breaker 4 kW + auxiliary contact Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3104773 ABB MC1C301ATWDD-RAIL Mini contactor 3 makers, 1 breaker 4 kW + auxiliary contact Piece 1 pc(s)
Description
The MC1C-Rail mini contactor is a size-optimized 3-pin contactor with DC control, screw terminals and an integrated auxiliary contact. It complies with the latest standards for rolling rail vehicles and allows installation in passenger or driver's cabs of trains that frequently operate in tunnels or underpasses. It is mainly used for control of single or three-phase loads up to 4 kW (AC-3) and 20A (AC-1) at up to 690V. It complies with all important standards for rolling material: IEC 60947-4-1, IEC 60077-5-1, IEC 60947-1/-2 and applicable parts of standards EN 50155, shock and vibration resistance in accordance with IEC 61373 Cat 1, Class B. It also achieves the highest levels of fire and smoke performance in compliance with European standard EN 45545-2. The mini contactor is suitable for DIN rail or wall mounting.
