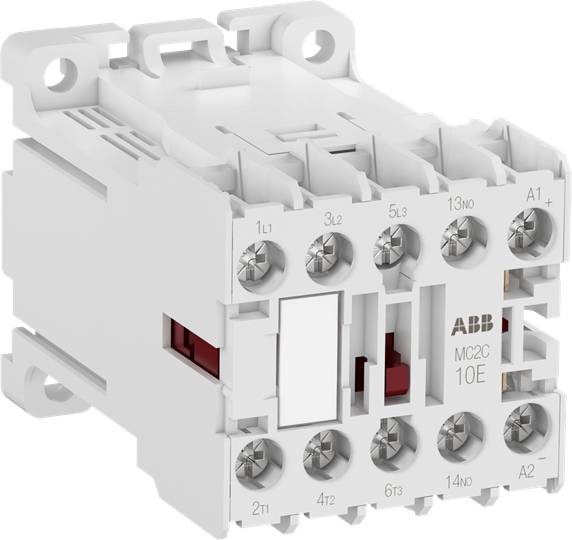

ABB MC2C310ATD Mini contactor 4 makers 5.5 kW + auxiliary contact 1 pc(s)
EAN:
Part number:
Item no:
Product type
Mini contactor
No. of pins
3-pin
Power
5.5 kW
Connection
Screws
Type
MC2C310ATD
Datasheet (PDF)
Technical specifications
- Product type
Mini contactor
- Type
MC2C310ATD
- No. of pins
3-pin
- Contact type
4 makers
- Auxiliary contact type
4 makers
- Control voltage (max.)
24 V DC
- Control voltage range
24 V DC (max)
- Switching voltage (max.)
690 V AC
- Permanent current (max.)
20 A
5.5 kW
- Features
+ auxiliary contact
- Mounting type
DIN rail
- Connection
Screws
- Content
1 pc(s)
FALSE
5.5 kW
3
0
1
0
12 A
20 A
24-24 V
Screw connection
DC
9 A
4 kW
2.2371 kW
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3104765 ABB MC2C310ATD Mini contactor 4 makers 5.5 kW + auxiliary contact 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3104765 ABB MC2C310ATD Mini contactor 4 makers 5.5 kW + auxiliary contact 1 pc(s)
Description
The MC2C small contactor is a size-optimized 3-pin contactor with an integrated auxiliary contact, DC control and screw connections. It provides the optimum solution when high performance is required but space is limited. These miniature contactors can be used in residential buildings, commercial buildings and many industrial applications to control single or three-phase loads up to 5.5 kW (AC-3) and 20A (AC-1) at 690 V or to control signals. In addition, up to 6 additional auxiliary contacts can be mounted on the front or side. The contactor is suitable for DIN rail or wall mounting.
This text is machine translated.
This text is machine translated.
