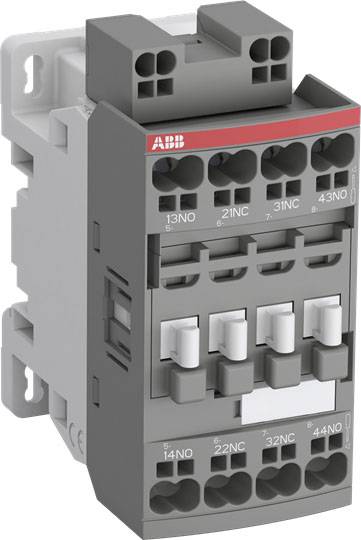

ABB NFZ40EK-21 Switch 4 makers 1.7 W 24 V 3 A + surge protection 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switch
No. of pins
4-pin
Nominal voltage
24 V
Current load
3 A
Power
1.7 W
Datasheet (PDF)
Technical specifications
- Product type
Switch
- Type
NFZ40EK-21
- No. of pins
4-pin
- Contact type
4 makers
- Auxiliary contact type
4 makers
- Nominal voltage
24 V
- Control voltage (min.)
24 V DC
- Control voltage range
24 V DC (min)
- Permanent current (max.)
3 A
- Current load
3 A
1.7 W
- Features
+ surge protection
- Mounting type
Screws
- Connection
Spring-loaded connector
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2319607 ABB NFZ40EK-21 Switch 4 makers 1.7 W 24 V 3 A + surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2319607 ABB NFZ40EK-21 Switch 4 makers 1.7 W 24 V 3 A + surge protection 1 pc(s)
Description
The 4-pole NFZ contactor relays are used for switching auxiliary and control circuits. They have an electronic coil interface that can realize a very wide control voltage. This also allows large control voltage fluctuations to be managed. The contactor relays enable direct control through ≥24V DC 500mA PLC outputs and require a very low holding power of only 1.7W. NFZ contactor relays can withstand short voltage dips and voltage drops (according TO SEMI F47-0706) between 24...250 V 50/60 Hz. They have a built-in surge protection and do not require any additional extinguishing elements. A wide range of accessories is also available.
