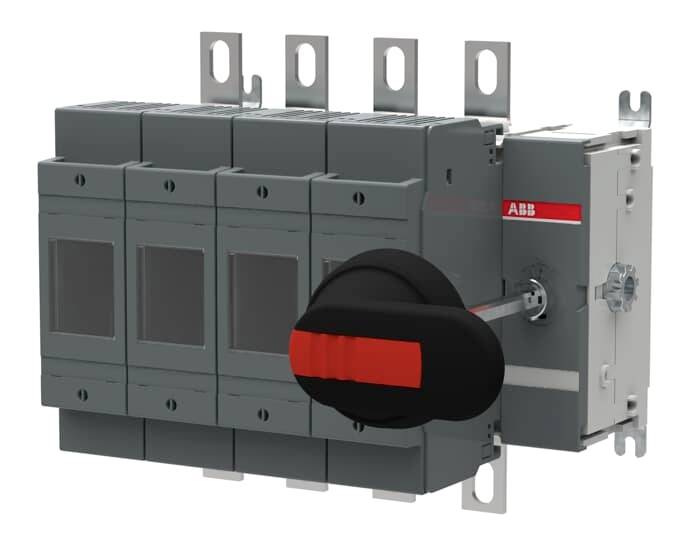

ABB OS200D40N2P Isolator switch 200 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Isolator switch
Operation type
Rotation actuator
Switching current (max.)
200 A
Number of pins
4
Connection
Bolt fixings
Datasheet (PDF)
Technical specifications
- Product type
Isolator switch
- Operation type
Rotation actuator
- Number of pins
4
- Connection
Bolt fixings
- Switching current (max.)
200 A
200 kW
IP20
- Content
1 pc(s)
- Type
OS200D40N2P
Other
200 A
4
80 kA
IP20
NH0
FALSE
Bolt connection
FALSE
Long turning handle
TRUE
TRUE
200 kW
8 kA
FALSE
FALSE
TRUE
1000 V
FALSE
FALSE
Right
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3099567 ABB OS200D40N2P Isolator switch 200 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3099567 ABB OS200D40N2P Isolator switch 200 A 1 pc(s)
Description
The manually operated switch disconnectors of the OT series are unique in their variety of variations and flexibility. The OT series switches currents from 16 A to 4000 A and switches at voltages up to 1000 V AC. Despite their high output, the switches are very user-friendly and take up little space. A high degree of flexibility and efficiency in planning is possible thanks to the freely selectable installation position. In addition, the OT switches can be used as main switches in the main or sub-distribution. Naturally the OT series also has IEC and UL approvals, which make this series even more attractive. ABB also supplies a wide range of accessories for these switches, such as extension shafts, handles, auxiliary switches and terminal covers. As a result, the TDC switch disconnectors can also be used in the most demanding applications.
