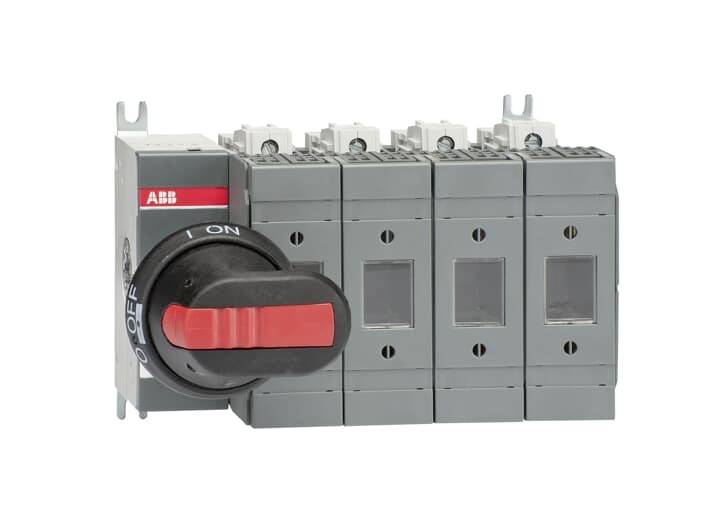

ABB OS60GJ04FP Isolator switch 63 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Isolator switch
Operation type
Rotation actuator
Switching current (max.)
63 A
No. of contacts
4
Number of pins
4
Datasheet (PDF)
Technical specifications
- Product type
Isolator switch
- Operation type
Rotation actuator
- No. of contacts
4
- Number of pins
4
- Connection
Screws
- Switching current (max.)
63 A
55 kW
- Content
1 pc(s)
- Type
OS60GJ04FP
Other
63 A
4
80 kA
Other
FALSE
Screw connection
FALSE
Long turning handle
TRUE
TRUE
55 kW
2.5 kA
FALSE
FALSE
TRUE
1000 V
FALSE
FALSE
Left
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3100114 ABB OS60GJ04FP Isolator switch 63 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3100114 ABB OS60GJ04FP Isolator switch 63 A 1 pc(s)
Description
The manually operated OS series switch disconnectors from ABB provide optimum protection for the most demanding applications. The OS series switches currents from 20 A to 1250 A and at voltages up to 690 V AC. All OS switches have an integrated fuse chamber where fuses of different sizes can be used. For this purpose, ABB offers different versions for different backup standards. Thanks to its modular design, the mechanism and poles can be positioned according to the installation requirements. This enables a high degree of flexibility and efficiency in planning. In addition, the series has IEC and UL approvals. ABB offers a wide range of accessories for these switches, such as extension shafts, handles, auxiliary switches and terminal covers. The OS switches are an ideal solution for motor protection and can be used in numerous other industrial applications along with transformers.
