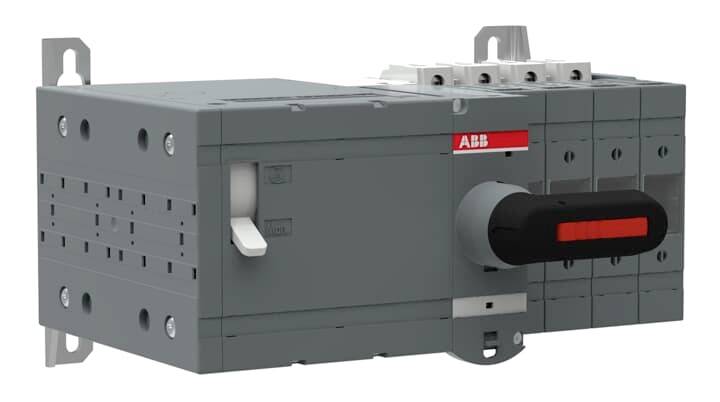

ABB OSM63GD4N2M230C Isolator switch 63 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Isolator switch
Operation type
Rotation actuator
Switching current (max.)
63 A
No. of contacts
4
Number of pins
4
Datasheet (PDF)
Technical specifications
- Product type
Isolator switch
- Operation type
Rotation actuator
- No. of contacts
4
- Number of pins
4
- Connection
Screws
- Switching current (max.)
63 A
37 kW
- Content
1 pc(s)
- Type
OSM63GD4N2M230C
Other
63 A
4
80 kA
NH000
FALSE
Screw connection
FALSE
Long turning handle
TRUE
TRUE
37 kW
2.5 kA
FALSE
FALSE
TRUE
1000 V
FALSE
Left
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3100188 ABB OSM63GD4N2M230C Isolator switch 63 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3100188 ABB OSM63GD4N2M230C Isolator switch 63 A 1 pc(s)
Description
The ABB OSM series motor-operated switch disconnectors are Ideal for installations that require remote operation. The OSM series switches currents from 32 A to 1250 A at voltages up to 690 V AC. The maintenance-free motor is available in operating voltages from 220 V to 240 V AC / DC depending on the type. To ensure a high level of safety, the motors are protected against overcurrent by a fuse. All OSM switches have an integrated fuse chamber in which fuses of different designs can be used. In addition, the series possesses an IEC approval. ABB offers a wide range of accessories for these switches, such as extension shafts, handles, auxiliary switches and terminal covers. The simple handling makes the series an optimal solution for different applications.
