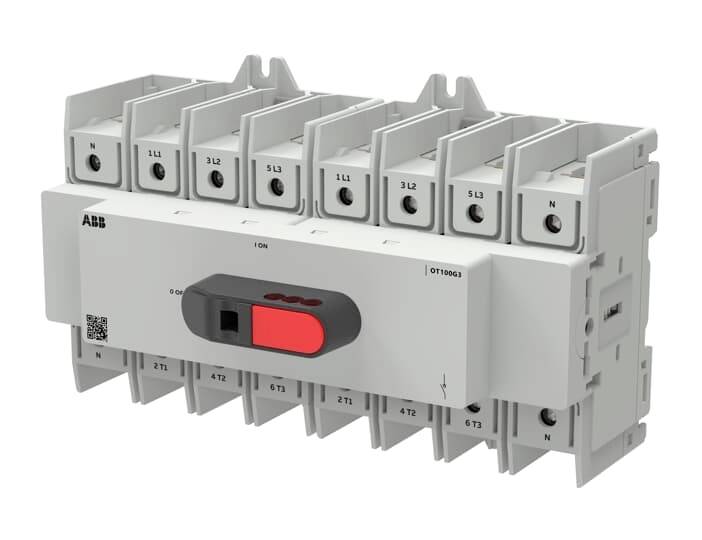

ABB OT100G3-8BS Isolator switch Lockable 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Isolator switch
Operation type
manually
Mounting type
For distributors
Switch/button features
Lockable
Technical specifications
- Packaging type
Piece
- Product type
Isolator switch
- Switch/button features
Lockable
- Operation type
manually
- Type
Main switch, service/repair switch
- Mounting type
For distributors
- No. of contacts
3
- Number of pins
8
- Depth
95 mm
- Width
123 mm
- Height
191 mm
- Content
1 pc(s)
- Type
OT100G3-8BS
- Dim
(W x H x D) 123 x 191 x 95 mm
- Operating voltage
800 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3783748 ABB OT100G3-8BS Isolator switch Lockable 1 pc(s) Piece
Description
The manually operated switch disconnectors of the OT Plus series are characterized by their versatility and flexibility. They offer a reliable solution for applications such as power distribution cabinets, sub-distributions and industrial systems. The OT Plus series covers a current range from 16 A to 160 A and offers 3-, 4-, 6- and 8-pole variants. The selectable function of the fourth pole allows two different functions within the same switch: The simultaneous function or the early/late-opening function. As standard, the switches are equipped with a lockable handle, WAS offers additional safety. The new universal auxiliary contacts are easy to install and remove and can be mounted on a switch with up to 4 NC and 4 NO contacts. Thanks to the new square holes on the switch handles, the switch can be mounted at an angle of 0°, 90°, 180° or 270°, WAS allows a high flexibility during installation. Of course, the OT Plus switch disconnectors meet the relevant standards in accordance with EN and UL, WAS, which increases their attractiveness for demanding applications.
