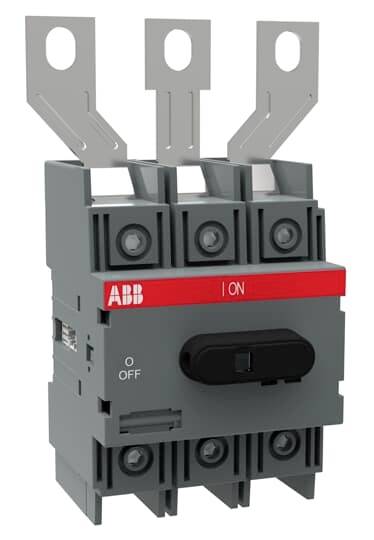

ABB OT125FLA3 Isolator switch 125 A 750 V Black 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Isolator switch
Operation type
Rotation actuator
Switching voltage
750 V
Switching current (max.)
125 A
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Isolator switch
- Casing/button colour
Black
- Operation type
Rotation actuator
- Number of pins
3
- Connection
Screws
- Switching voltage
750 V
- Switching current (max.)
125 A
45 kW
IP20
- Content
1 pc(s)
- Type
OT125FLA3
0
0
125 A
3
750-750 V
IP20
0
FALSE
FALSE
Screw connection
FALSE
Long turning handle
TRUE
FALSE
TRUE
45 kW
2.5 kA
Black
FALSE
FALSE
TRUE
750 V
FALSE
FALSE
Built-in device fixed built-in technique
125 A
45 kW
FALSE
90 A
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3100080 ABB OT125FLA3 Isolator switch 125 A 750 V Black 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3100080 ABB OT125FLA3 Isolator switch 125 A 750 V Black 1 pc(s) Piece
Description
The manually operated switch disconnectors of the OT series are unique in their variety of variations and flexibility.
The OT series switches currents from 16 A to 4000 A and switches at voltages up to 1000 V AC.
Despite their high output, the switches are very user-friendly and take up little space.
A high degree of flexibility and efficiency in planning is possible thanks to the freely selectable installation position.
In addition, the OT switches can be used as main switches in the main or sub-distribution. Naturally the OT series also has IEC and UL approvals, which make this series even more attractive. ABB also supplies a wide range of accessories for these switches, such as extension shafts, handles, auxiliary switches and terminal covers. As a result, the TDC switch disconnectors can also be used in the most demanding applications.
