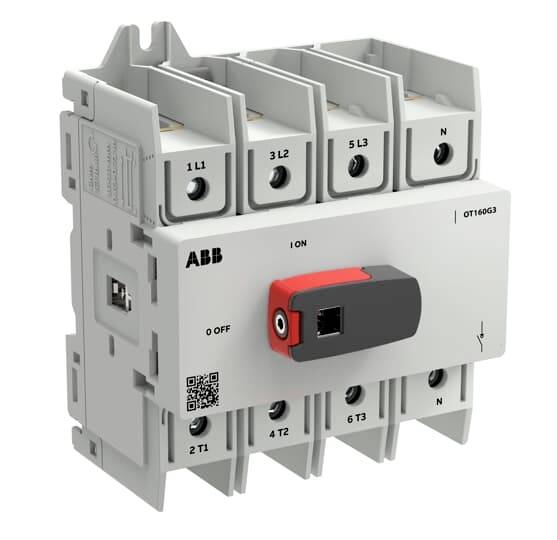

ABB OT160G3-4BSN2/32 Isolator switch lockable 1 pc(s)
EAN:
Part number:
Item no:
Product type
Isolator switch
Operation type
manually
Switch/button features
lockable
Type
Main switch, service/repair switch
No. of contacts
8
Technical specifications
- Product type
Isolator switch
- Switch/button features
lockable
- Operation type
manually
- Type
Main switch, service/repair switch
- No. of contacts
8
- Number of pins
4
- Depth
74.6 mm
- Width
95.5 mm
- Height
123 mm
- Content
1 pc(s)
- Type
OT160G3-4BSN2/32
- Dim
(W x H x D) 95.5 x 123 x 74.6 mm
- Operating voltage
800 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3783426 ABB OT160G3-4BSN2/32 Isolator switch lockable 1 pc(s)
Description
The manually operated switch disconnectors of the OT Plus series are characterized by their versatility and flexibility. They offer a reliable solution for applications such as power distribution cabinets, sub-distributions and industrial systems. The OT Plus series covers a current range from 16 A to 160 A and offers 3-, 4-, 6- and 8-pole variants. The selectable function of the fourth pole allows two different functions within the same switch: The simultaneous function or the early/late-opening function. As standard, the switches are equipped with a lockable handle, WAS offers additional safety. The new universal auxiliary contacts are easy to install and remove and can be mounted on a switch with up to 4 NC and 4 NO contacts. Thanks to the new square holes on the switch handles, the switch can be mounted at an angle of 0°, 90°, 180° or 270°, WAS allows a high flexibility during installation. Of course, the OT Plus switch disconnectors meet the relevant standards in accordance with EN and UL, WAS, which increases their attractiveness for demanding applications.
This text is machine translated.
