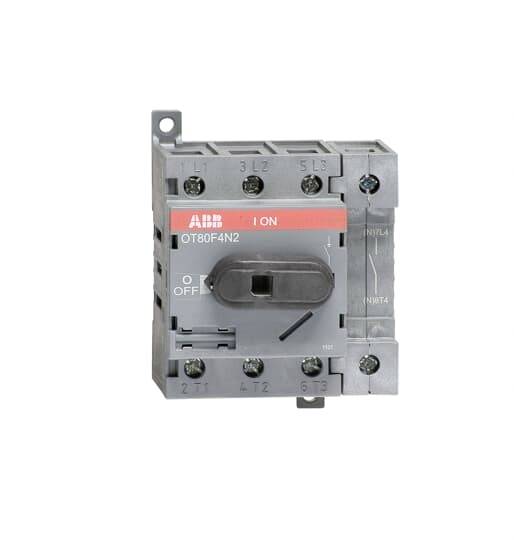

ABB OT80F4N2 Isolator switch + enclosure Black 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Isolator switch
Operation type
manually
Mounting type
Floor
For distributors
Switch/button features
+ enclosure
Technical specifications
- Packaging type
Piece
- Product type
Isolator switch
- Switch/button features
+ enclosure
- Casing/button colour
Black
- Operation type
manually
- Type
Main switch, service/repair switch
- Mounting type
Floor
For distributors
- No. of contacts
4
- Number of pins
4
- Connection
Screws
37 kW
- Depth
72.5 mm
- Width
70 mm
- Height
91.5 mm
IP20
- Content
1 pc(s)
- Type
OT80F4N2
- Dim
(W x H x D) 70 x 91.5 x 72.5 mm
- Operating voltage
750 V
- Weight
1000 g
70
91.5 mm
72.5 mm
37 kW
0
0
80 A
4
750-750 V
IP20
0
FALSE
FALSE
Cable clamp
FALSE
Toggle
TRUE
FALSE
FALSE
37 kW
1.5 kA
Black
TRUE
FALSE
FALSE
TRUE
690 V
FALSE
FALSE
Built-in device fixed built-in technique
80 A
37 kW
FALSE
75
1
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3786898 ABB OT80F4N2 Isolator switch + enclosure Black 1 pc(s) Piece
Description
The manually operated switch disconnectors of the OT series are unique in their variety of variations and flexibility. The OT series switches currents from 16 A to 4000 A and switches at voltages up to 1000 V AC. Despite their high output, the switches are very user-friendly and take up little space. A high degree of flexibility and efficiency in planning is possible thanks to the freely selectable installation position. In addition, the OT switches can be used as main switches in the main or sub-distribution. Naturally the OT series also has IEC and UL approvals, which make this series even more attractive. ABB also supplies a wide range of accessories for these switches, such as extension shafts, handles, auxiliary switches and terminal covers. As a result, the TDC switch disconnectors can also be used in the most demanding applications.
