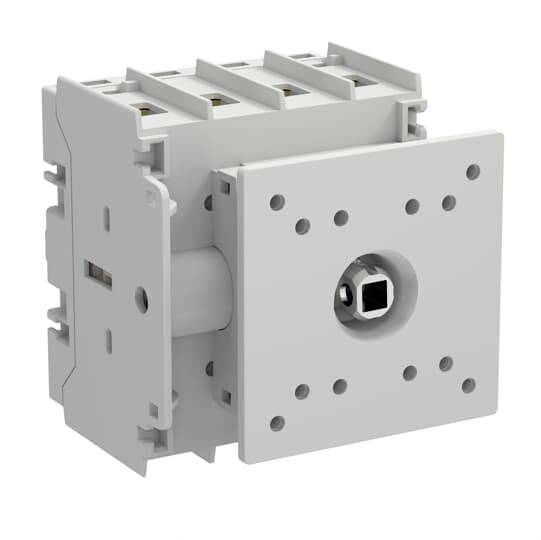

ABB OT80G2-4DSN2 Isolator switch lockable 1 pc(s)
EAN:
Part number:
Item no:
Product type
Isolator switch
Operation type
manually
Switch/button features
lockable
No. of contacts
4
Number of pins
4
Technical specifications
- Product type
Isolator switch
- Switch/button features
lockable
- Operation type
manually
- No. of contacts
4
- Number of pins
4
45 kW
- Depth
70 mm
- Width
76 mm
- Height
81 mm
- Content
1 pc(s)
- Type
OT80G2-4DSN2
- Dim
(W x H x D) 76 x 81 x 70 mm
- Operating voltage
800 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3783752 ABB OT80G2-4DSN2 Isolator switch lockable 1 pc(s)
Description
The manually operated switch disconnectors of the OT Plus series are characterized by their versatility and flexibility. They offer a reliable solution for applications such as power distribution cabinets, sub-distributions and industrial systems. The OT Plus series covers a current range from 16 A to 160 A and offers 3-, 4-, 6- and 8-pole variants. The selectable function of the fourth pole allows two different functions within the same switch: The simultaneous function or the early/late-opening function. As standard, the switches are equipped with a lockable handle, WAS offers additional safety. The new universal auxiliary contacts are easy to install and remove and can be mounted on a switch with up to 4 NC and 4 NO contacts. Thanks to the new square holes on the switch handles, the switch can be mounted at an angle of 0°, 90°, 180° or 270°, WAS allows a high flexibility during installation. Of course, the OT Plus switch disconnectors meet the relevant standards in accordance with EN and UL, WAS, which increases their attractiveness for demanding applications.
