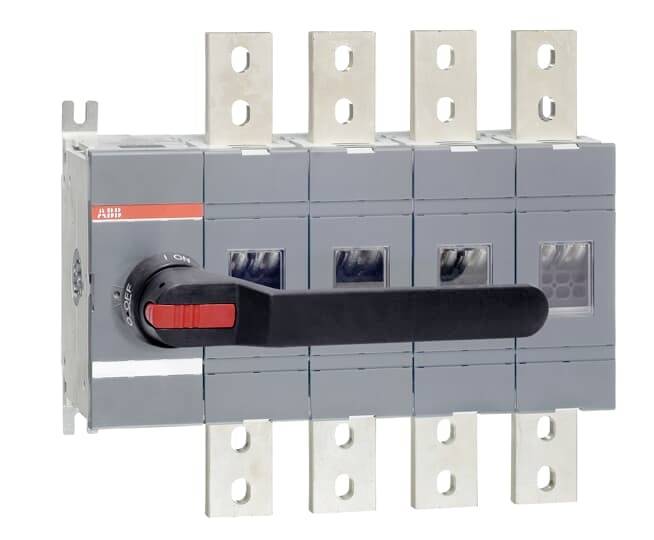

ABB OTHV1600E04P Isolator switch lockable 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Isolator switch
Operation type
manually
Mounting type
For distributors
Switch/button features
lockable
Technical specifications
- Packaging type
Piece
- Product type
Isolator switch
- Switch/button features
lockable
- Functions
Mechanical lock
- Operation type
manually
- Type
Main switch, service/repair switch
- Mounting type
For distributors
- Switch position
Off/On
- Print motif
ON/OFF
- Number of pins
4
- Depth
167 mm
- Width
414.5 mm
- Height
372 mm
- Content
1 pc(s)
- Type
OTHV1600E04P
- Dim
(W x H x D) 414.5 x 372 x 167 mm
- Operating voltage
1000 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3783660 ABB OTHV1600E04P Isolator switch lockable 1 pc(s) Piece
Description
The manually operated switch disconnectors of the OTHV series are characterized by their extraordinary variety of variations and flexibility. They are specially designed for applications ranging from 800 to 1000 VAC and meet the high demands of high voltage applications, especially in industrial automation, power distribution, power plants and other areas. These switch disconnectors cover a comprehensive current range from 100 A to 2500 A and are available in both 3-pole and 4-pole versions. They have several safety functions, including a clear ON/OFF status indicator, a door lock in the ON position and the possibility to mount a padlock in the OFF position to prevent unwanted operation. The product range is tested in accordance with IEC 60947-3. The modular design of the switch disconnectors makes installation simple and flexible. In addition, ABB offers a wide range of accessories for these switches, such as extension shafts, handles, auxiliary switches and terminal covers. This means that the OTHV switch disconnectors can be used effectively even in the most demanding applications.
