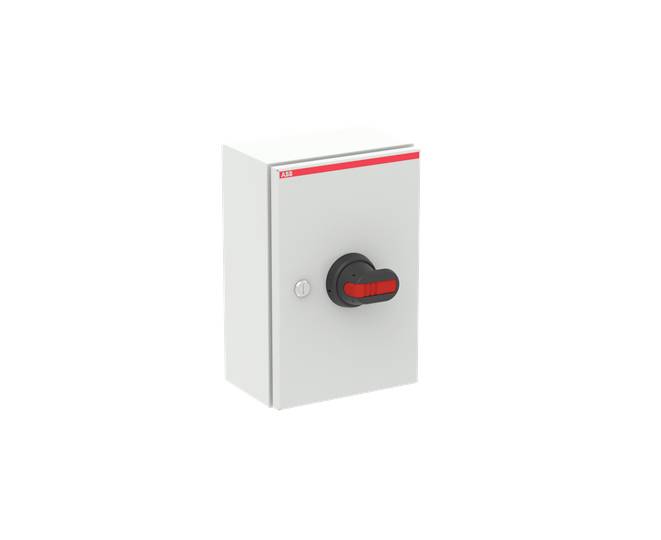

ABB OTL125B3U Isolator switch + contact 125 A 750 V Black 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Isolator switch
Operation type
Rotation actuator
Switching voltage
750 V
Switching current (max.)
125 A
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Isolator switch
- Switch/button features
+ contact
- Casing/button colour
Black
- Operation type
Rotation actuator
- No. of contacts
3-poliger. 4-poliger und 6-poliger
- Number of pins
3
- Connection
Clamp
- Switching voltage
750 V
- Switching current (max.)
125 A
45 kW
IP65
- Content
1 pc(s)
- Type
OTL125B3U
0
0
125 A
3
750-750 V
IP65
0
1
TRUE
FALSE
FALSE
Long turning handle
TRUE
FALSE
FALSE
45 kW
Black
FALSE
TRUE
FALSE
FALSE
750 V
FALSE
FALSE
Complete device in housing
125 A
45 kW
FALSE
90 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3099456 ABB OTL125B3U Isolator switch + contact 125 A 750 V Black 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3099456 ABB OTL125B3U Isolator switch + contact 125 A 750 V Black 1 pc(s) Piece
Description
Switch disconnectors in the housing of ABB comply with the DIN EN 60947-3 and DIN EN 60529 device standards. The switches are suitable for use as a repair and maintenance switch. Our range includes plastic enclosures, steel sheet housings, aluminum housing and stainless steel housing. In addition, the switches are available in 3-pin, 4-pin and 6-pin versions. Depending on the type, this device can be used for AC and, in some cases, for DC voltages. As an accessory, ABB offers a variety of handles in black and red-yellow. Auxiliary contacts, fourth poles, terminal clamps and various cable entries are also available as accessories from ABB.
