ABB Position sensor 1 pc(s) CM-ENS.13P (W x H) 22.5 mm x 103.7 mm
EAN:
Part number:
Item no:
Product type
Position sensor
Type
CM-ENS.13P
Content
1 pc(s)
Max. operating voltage
110 V
Operating voltage
110 V (max)
Datasheet (PDF)
Technical specifications
- Product type
Position sensor
- Type
CM-ENS.13P
- Content
1 pc(s)
- Max. operating voltage
110 V
- Operating voltage
110 V (max)
- Width
22.5 mm
- Height
103.7 mm
- Dim
(W x H) 22.5 mm x 103.7 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2329348 ABB Position sensor 1 pc(s) CM-ENS.13P (W x H) 22.5 mm x 103.7 mm
User & Safety Instructions
User & Safety Instructions 2329348 ABB Position sensor 1 pc(s) CM-ENS.13P (W x H) 22.5 mm x 103.7 mm
Description

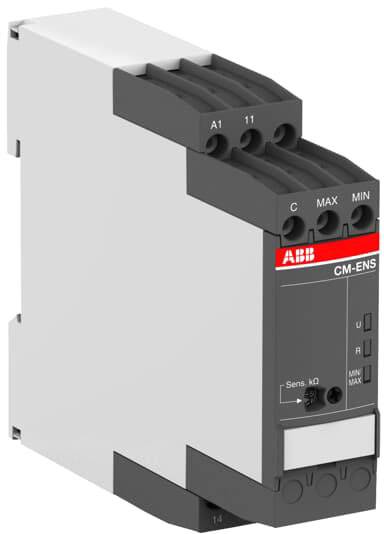

THE CM-ENS.13P is a relay from THE CM family for level monitoring and level control. The rated control supply voltage is 110-130 V AC, or 220-240 V AC. Output: 1 changeover contact (250 V / 4A). It monitors and controls levels and mixing ratios of conductive liquids. It is used for filling and emptying applications, for dry running protection of pumps and for signaling the status of the monitored level. Working current principle. The sensitivity can be set using the potentiometer mounted on the front. Various electrodes, as well as a sealable clear cover for protection against unauthorized adjustment of the settings are available as accessories. The device has maintenance-free and easy-to-handle push-in terminals.
