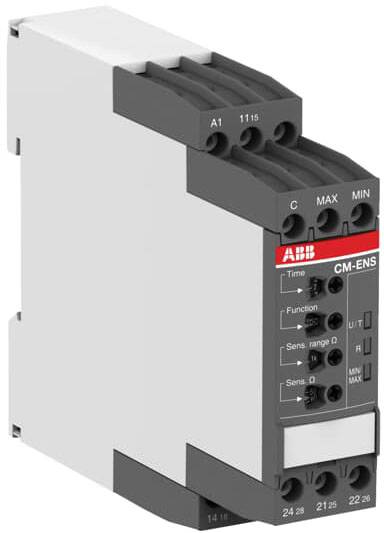

ABB Position sensor 1 pc(s) CM-ENS.31S (W x H) 22.5 mm x 85.6 mm
EAN:
Part number:
Item no:
Product type
Position sensor
Connector
Screw-fit
Type
CM-ENS.31S
Content
1 pc(s)
Max. operating voltage
24 V
Datasheet (PDF)
Technical specifications
- Product type
Position sensor
- Type
CM-ENS.31S
- Content
1 pc(s)
- Max. operating voltage
24 V
- Operating voltage
24 V (max)
- Connector
Screw-fit
- Width
22.5 mm
- Height
85.6 mm
- Dim
(W x H) 22.5 mm x 85.6 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2327367 ABB Position sensor 1 pc(s) CM-ENS.31S (W x H) 22.5 mm x 85.6 mm
User & Safety Instructions
User & Safety Instructions 2327367 ABB Position sensor 1 pc(s) CM-ENS.31S (W x H) 22.5 mm x 85.6 mm
Description
THE CM-ENS.31S is a relay from THE CM family for level monitoring and level control. The rated control supply voltage is 24 - 240 V AC/DC. Output: 2 changeover contacts (250 V / 4A). It monitors and controls levels and mixing ratios of conductive liquids. It is used for filling and emptying applications, for dry running protection of pumps and for signaling the status of the monitored level. The sensitivity and the working principle can be set using the front mounted potentiometer. In addition, the delay time, selectable time functions: On-delay, or off-delay, can be set from 0.1 to 10 s. Various electrodes, as well as a sealable clear cover for protection against unauthorized adjustment of the settings are available as accessories. The device is available with double chamber box screw terminals, or push-in terminals.
