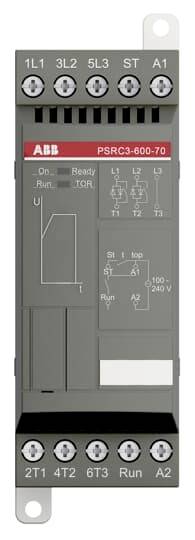

ABB PSRC3-600-70 1SFA896203R7000 Soft starter Nominal current 3.9 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Soft starter
- Supply current
3.9 A
- Operating voltage
600 V
- Type
A direction of rotation
- Manufacturer part #
1SFA896203R7000
- Nominal current
3.9 A
- Nominal current - rounded value
3.9 A
- Type
PSRC3-600-70
- Motor power at 230V / 400V
0.75 kW
- Max. temperature
40 °C
Single direction
FALSE
208-600 V
100-240 V
100-240 V
IP20
Adjustable
3.9 A
0.75 kW
1.5 kW
40 °C
FALSE
AC
TRUE
FALSE
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3102794 ABB PSRC3-600-70 1SFA896203R7000 Soft starter Nominal current 3.9 A
User & Safety Instructions
User & Safety Instructions 3102794 ABB PSRC3-600-70 1SFA896203R7000 Soft starter Nominal current 3.9 A
Description
PSRC is a unique, very easy to use soft starter that has been developed for the special requirements of scroll compressors. It guarantees a low starting current and thus a long life of the compressor at short starting times. Since the settings cannot be changed, the entire system works very reliably. PSRC is based on the PSR Softstarter, which has been on the market for many years. PSRC with built-in bypass is compact as the PSR and therefore as easy to install and integrate into most installations.
