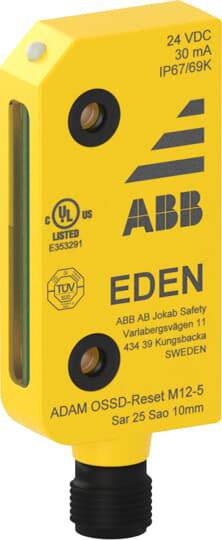

ABB Safety relay Capacitive AS interface Adam OSSD-Reset M12-5
EAN:
Part number:
Item no:
Product type
Safety relay
Outputs
AS interface
Switching distance (max.)
15 mm
Model
Capacitive
Connector
M12
Datasheet (PDF)
Technical specifications
- Product type
Safety relay
- Type
Adam OSSD-Reset M12-5
- Min. operating voltage
0 V
- Operating voltage
0 V (min)
- Outputs
AS interface
- Switching distance (max.)
15 mm
- Model
Capacitive
- Features
LED indicator
- Connector
M12
- Enclosure material
Plastic
IP67
- Min. temperature
-40 °C
- Max. temperature
70 °C
- Length
12 mm
- Width
30 mm
- Height
75.2 mm
- Dim
(L x W x H) 12 x 30 x 75.2 mm
- Switching frequency
10
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2317903 ABB Safety relay Capacitive AS interface Adam OSSD-Reset M12-5
User & Safety Instructions
User & Safety Instructions 2317903 ABB Safety relay Capacitive AS interface Adam OSSD-Reset M12-5
Description
Eden DYN (also with StatusBus), OSSD and AS-i are non-contact safety sensors with coding, consisting of Adam and Eve. Eden is used on locked safety devices such as doors, gates and hoods and for secure position detection. They are ideally suited for harsh environments, have IP69K and a temperature range of -40 to +70 °C. There are versions with built-in, monitored reset with reset display. Eden DYN is suitable for single-channel DYNlink safety circuits with Vital or Pluto. Eden OSSD for two-channel safety circuits with safety relays or safety PLCs. Eden AS-i operate directly on the AS-i bus. Eden corresponds to model 4, optionally with high or low coding stage according to EN ISO 14119 and reaches up to PLe (EN ISO 13849-1) or SIL3 (EN 61508, EN 62061), even in series connection/cascading of up to 30 sensors. Variable mounting and 360 ° scanning are possible.
