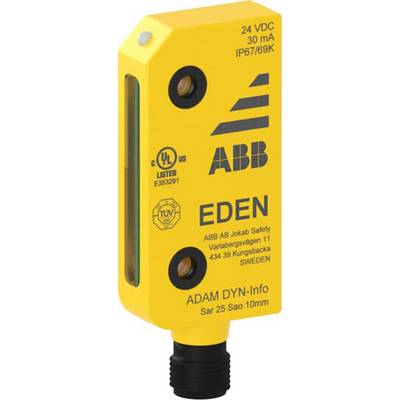

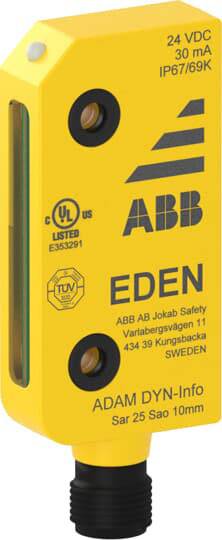

ABB Safety relay Capacitive M12 non-shielded Adam DYN-Info M12-5
EAN:
Part number:
Item no:
Product type
Safety relay
Switching distance (max.)
15 mm
Model
Capacitive
Connector
M12
Type
Adam DYN-Info M12-5
Datasheet (PDF)
Technical specifications
- Product type
Safety relay
- Type
Adam DYN-Info M12-5
- Min. operating voltage
0 V
- Operating voltage
0 V (min)
- Switching distance (max.)
15 mm
- Model
Capacitive
- Features
LED indicator
- Connector
M12
- Installation type
non-shielded
- Size
M12
- Enclosure material
Plastic
IP67
- Min. temperature
-40 °C
- Max. temperature
70 °C
- Length
12 mm
- Width
30 mm
- Height
75.2 mm
- Dim
(L x W x H) 12 x 30 x 75.2 mm
- Depth
12 mm
- Switching frequency
10
- Weight
0.05
DC
Plastic
TRUE
Uncoated
-40-70 °C
Connector M12
None
None
Other
Level e
3
4X
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2320401 ABB Safety relay Capacitive M12 non-shielded Adam DYN-Info M12-5
User & Safety Instructions
User & Safety Instructions 2320401 ABB Safety relay Capacitive M12 non-shielded Adam DYN-Info M12-5
Description
Eden DYN (also with StatusBus), OSSD and AS-i are non-contact safety sensors with coding, consisting of Adam and Eve. Eden is used on locked safety devices such as doors, gates and hoods and for secure position detection. They are ideally suited for harsh environments, have IP69K and a temperature range of -40 to +70 °C. There are versions with built-in, monitored reset with reset display. Eden DYN is suitable for single-channel DYNlink safety circuits with Vital or Pluto. Eden OSSD for two-channel safety circuits with safety relays or safety PLCs. Eden AS-i operate directly on the AS-i bus. Eden corresponds to model 4, optionally with high or low coding stage according to EN ISO 14119 and reaches up to PLe (EN ISO 13849-1) or SIL3 (EN 61508, EN 62061), even in series connection/cascading of up to 30 sensors. Variable mounting and 360 ° scanning are possible.
