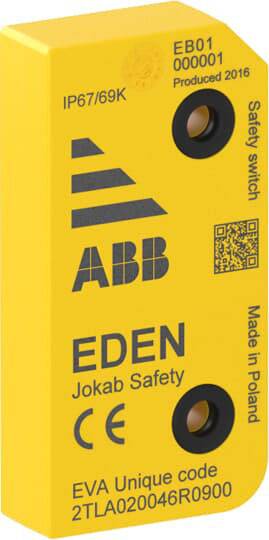

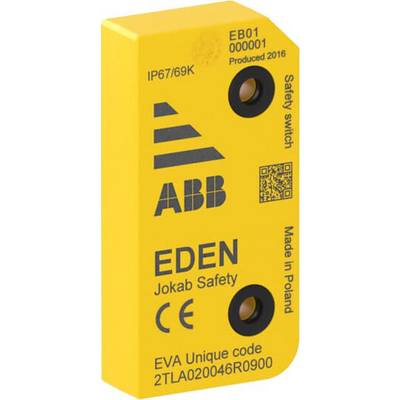

ABB Safety relay Eva Unique code Protective field height 60 24 V DC
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Safety relay
Length
12 mm
Height
60 mm
Type
Eva Unique code
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Safety relay
- Type
Eva Unique code
- Range of uses
PPE
- Features
stackable
- Operating voltage
24 V DC
- Min. operating voltage
0 V
- Operating voltage
0 V (min)
- Performance level
PL e
- Safety integrity level
SIL 3
- Safety rating
4
- Protective field height
60
- Mirror height
60 mm
- Total height
60 mm
- Content
1 pc(s)
IP67
- Length
12 mm
- Width
30 mm
- Height
60 mm
- Dim
(L x W x H) 12 x 30 x 60 mm
- Min. temperature
-40 °C
- Max. temperature
70 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2319757 ABB Safety relay Eva Unique code Protective field height 60 24 V DC
User & Safety Instructions
User & Safety Instructions 2319757 ABB Safety relay Eva Unique code Protective field height 60 24 V DC
Description
Eden DYN (also with StatusBus), OSSD and AS-i are non-contact safety sensors with coding, consisting of Adam and Eve. Eden is used on locked safety devices such as doors, gates and hoods and for secure position detection. They are ideally suited for harsh environments, have IP69K and a temperature range of -40 to +70 °C. There are versions with built-in, monitored reset with reset display. Eden DYN is suitable for single-channel DYNlink safety circuits with Vital or Pluto. Eden OSSD for two-channel safety circuits with safety relays or safety PLCs. Eden AS-i operate directly on the AS-i bus. Eden corresponds to model 4, optionally with high or low coding stage according to EN ISO 14119 and reaches up to PLe (EN ISO 13849-1) or SIL3 (EN 61508, EN 62061), even in series connection/cascading of up to 30 sensors. Variable mounting and 360 ° scanning are possible.
