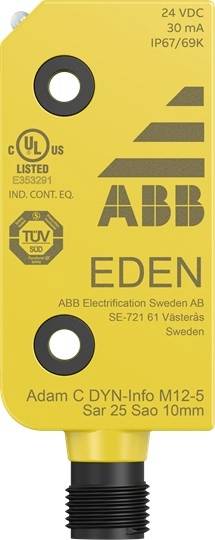

ABB Safety sensor M12 connector 1 pc(s) 2TLA020051R5101 (L x W x H) 12 x 30 x 75.2 mm Total height: 75.2 mm stackable
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Safety sensor
Type
2TLA020051R5101
Total height
75.2 mm
Material
Plastic
Technical specifications
- Packaging type
Piece
- Product type
Safety sensor
- Type
2TLA020051R5101
- Total height
75.2 mm
- Material
Plastic
- Min. temperature
-40 °C
- Max. temperature
70 °C
- Content
1 pc(s)
- Connector
M12 connector
- Features
stackable
IP67
- Length
12 mm
- Width
30 mm
- Height
75.2 mm
- Dim
(L x W x H) 12 x 30 x 75.2 mm
- Nominal voltage
24 V DC
- Type
With status indicator
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3785443 ABB Safety sensor M12 connector 1 pc(s) 2TLA020051R5101 (L x W x H) 12 x 30 x 75.2 mm Total height: 75.2 mm stackable
Description
Eden DYN (also with StatusBus), OSSD and AS-i are non-contact safety sensors with coding, consisting of Adam and Eva. EDEN is used on interlocked protective devices such as doors, gates and hoods and for secure position detection. They are excellently suitable for harsh environments, have IP69K and a temperature range of -40 to +70 °C. There are versions with built-in, monitored reset with reset display. Eden DYN is suitable for single channel DYNlink safety circuits with Vital or Pluto. EDEN OSSD for two-channel safety circuits with safety relays or safety PLC. Eden AS-i is operated directly on the AS-i bus. Eden conforms to model 4, optionally with high or low coding stage according to EN ISO 14119 and achieves up to PLe (EN ISO 13849-1) or SIL3 (EN 61508, EN 62061), also with series connection / cascading of up to 30 sensors. Variable mounting and 360° scanning is possible.
