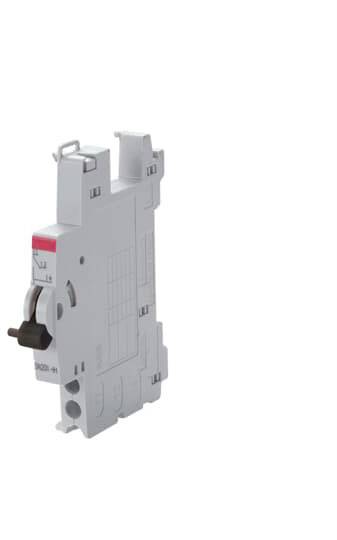

ABB SN201-IH Auxiliary switch 1 pc(s) 1 change-over Adjustment range (amperage): 45 A (max) Switching voltage (max.): 23
EAN:
Part number:
Item no:
Product type
Auxiliary switch
Amperage adjustment range (max.)
45 A
Contact type
1 change-over
Type
SN201-IH
Control voltage (max.)
230 V AC
Datasheet (PDF)
Technical specifications
- Product type
Auxiliary switch
- Type
SN201-IH
- Control voltage (max.)
230 V AC
- Control voltage range
230 V AC (max)
- Amperage adjustment range (max.)
45 A
- Adjustment range (amperage)
45 A (max)
- Contact type
1 change-over
- Auxiliary contact type
1 change-over
- Switching voltage (max.)
230 V AC
- Depth
82 cm
- Width
50 cm
- Height
100 cm
- Dim
(W x H x D) 50 x 100 x 82 cm
- Content
1 pc(s)
Side mounting
Screw connection
0
0
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2318578 ABB SN201-IH Auxiliary switch 1 pc(s) 1 change-over Adjustment range (amperage): 45 A (max) Switching voltage (max.): 23
User & Safety Instructions
User & Safety Instructions 2318578 ABB SN201-IH Auxiliary switch 1 pc(s) 1 change-over Adjustment range (amperage): 45 A (max) Switching voltage (max.): 23
Description
Coupling module/auxiliary switch for FI/LS switch (RCBO) DS203NC (3P+N in 4 modules). Function: The display of the device contact position and module for coupling other system per M compact® accessories S2C-... Auxiliary switch, signal contact/auxiliary switch or F2C-A... Shunt trip unit or S2C-UA... Undervoltage release to the DS203NC series.
