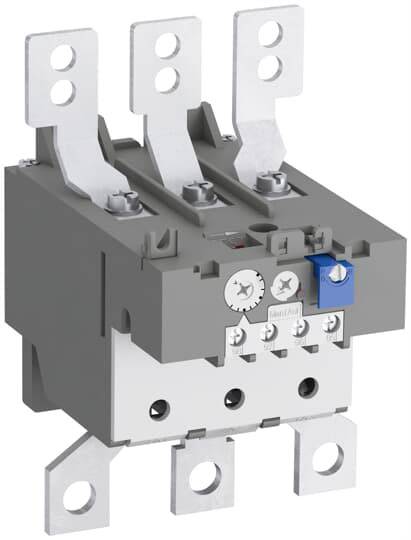

ABB TA200DU-135 O/L relay Nominal voltage: 690 V 1 maker Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
O/L relay
Contact type
1 maker
Nominal voltage
690 V
Type
TA200DU-135
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
O/L relay
- Type
TA200DU-135
- Connection
Screws
- Contact type
1 maker
- Nominal voltage
690 V
- Features
+ test button
- Content
1 pc(s)
Direct attachment/single positioning
1
1
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2322050 ABB TA200DU-135 O/L relay Nominal voltage: 690 V 1 maker Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2322050 ABB TA200DU-135 O/L relay Nominal voltage: 690 V 1 maker Piece 1 pc(s)
Description
TA200DU are economical, electromechanical motor protection devices for currents up to 200 A. In case of overload, they offer reliable thermal protection of the connected motors. TA200DU are mounted on contactors AF190 to AF205. If the motor current set on the current scale is exceeded, the relays trigger via bimetal elements and thus change the switching position of the two auxiliary contacts 1S/1NC. An upstream contactor is then switched off. The relays allow manual or automatic resetting, they have a test and stop function as well as a trip display. An additional reset button allows operation without opening the control cabinet. TA200DU have tripping class 10A, are temperature compensated and phase failure sensitive.
