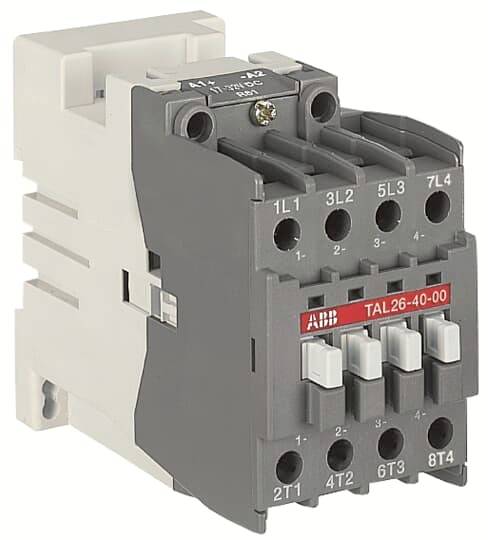

ABB TAL26-40-00-51 Contactor 4 makers 11 kW + auxiliary contact Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
No. of pins
4-pin
Power
11 kW
Connection
Screws
Packaging type
Piece
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Contactor
- Type
TAL26-40-00-51
- No. of pins
4-pin
- Contact type
4 makers
- Auxiliary contact type
4 makers
- Control voltage (min.)
17 V DC
- Control voltage (max.)
32 V DC
- Control voltage range
17 - 32 V DC
- Switching voltage (max.)
690 V AC
- Permanent current (max.)
45 A
11 kW
- Features
+ auxiliary contact
- Connection
Screws
- Content
1 pc(s)
FALSE
11 kW
4
0
0
0
26 A
45 A
17-32 V
Screw connection
DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3105377 ABB TAL26-40-00-51 Contactor 4 makers 11 kW + auxiliary contact Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3105377 ABB TAL26-40-00-51 Contactor 4 makers 11 kW + auxiliary contact Piece 1 pc(s)
Description
The 4-pole TAL26 contactors are generally used to control power circuits up to 690V AC or 220V DC. The contactors can also be used for many other applications such as insulation, capacitor circuit, lighting. The 1-story, 4-pole contactors of the TAL series... Are designed in modular construction.
- Main pole and auxiliary contact blocks: 4 Main pole, without built-in auxiliary contacts, the installation of additional front or side mounting auxiliary contact blocks is possible.
- Control circuit: DC operation with permanent magnetic circuit and wide voltage range.
The polarity at the coil terminals (A1+ and A2-) must be observed.
The contactors have railway approval.
This text is machine translated.
- Main pole and auxiliary contact blocks: 4 Main pole, without built-in auxiliary contacts, the installation of additional front or side mounting auxiliary contact blocks is possible.
- Control circuit: DC operation with permanent magnetic circuit and wide voltage range.
The polarity at the coil terminals (A1+ and A2-) must be observed.
The contactors have railway approval.
This text is machine translated.
