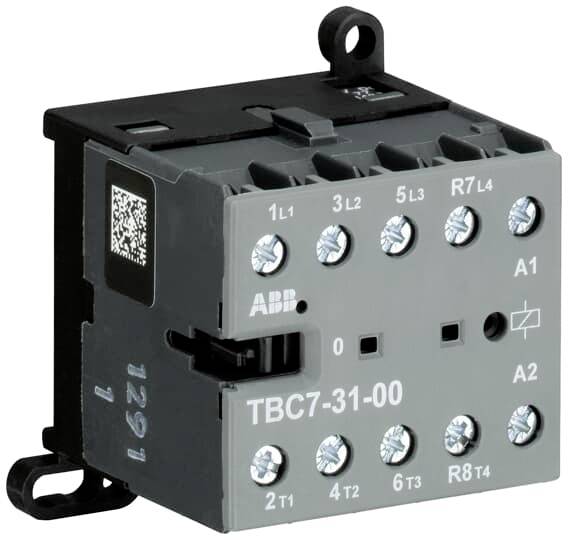

ABB TBC7-31-00-62 Mini contactor 3 makers, 1 breaker 5.5 kW Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Mini contactor
No. of pins
4-pin
Power
5.5 kW
Connection
Screws
Packaging type
Piece
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Mini contactor
- Type
TBC7-31-00-62
- No. of pins
4-pin
- Contact type
3 makers
1 breaker
- Control voltage (min.)
77 V DC
- Control voltage (max.)
143 V DC
- Control voltage range
77 - 143 V DC
- Permanent current (max.)
20 A
5.5 kW
- Connection
Screws
- Content
1 pc(s)
FALSE
5.5 kW
3
1
0
0
12 A
20 A
77-143 V
Screw connection
DC
2.2371 kW
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3111906 ABB TBC7-31-00-62 Mini contactor 3 makers, 1 breaker 5.5 kW Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3111906 ABB TBC7-31-00-62 Mini contactor 3 makers, 1 breaker 5.5 kW Piece 1 pc(s)
Description
TBC 7 4-pin miniature contactors are suitable for switching power circuits with slightly inductive or non-inductive loads up to 20A AC1. With small dimensions and connection variants in screw, solder pin and flat plug technology as well as various contact and wide-range coil variants, they can use a wide range of applications even under unfavorable space conditions
