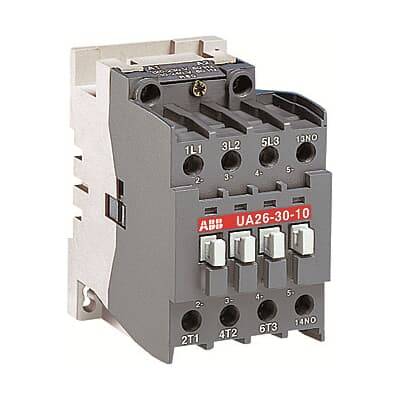

ABB UA26-30-10-85 Capacitor bank contactor 4 makers 1 pc(s)
EAN:
Part number:
Item no:
Product type
Capacitor bank contactor
No. of pins
3-pin
Connection
Screws
Type
UA26-30-10-85
Contact type
4 makers
Datasheet (PDF)
Technical specifications
- Product type
Capacitor bank contactor
- Type
UA26-30-10-85
- No. of pins
3-pin
- Contact type
4 makers
- Auxiliary contact type
1 maker
- Control voltage (min.)
380 V AC
- Control voltage (max.)
400 V AC
- Control voltage range
380 - 400 V AC
- Switching voltage (max.)
690 V AC
- Connection
Screws
- Width
54 mm
- Height
90 mm
- Depth
93.6 mm
- Dim
(W x H x D) 54 x 90 x 93.6 mm
- Content
1 pc(s)
3
0
1
0
380-400 V
400-415 V
Screw connection
18.5 kvar
AC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3105367 ABB UA26-30-10-85 Capacitor bank contactor 4 makers 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3105367 ABB UA26-30-10-85 Capacitor bank contactor 4 makers 1 pc(s)
Description
The 3-pin contactors UA26-30-10 for capacitor switching can be used in systems where the peak current reaches a maximum of 100 times the nominal effective current. Their electrical lifespan is 100 000 switching cycles. The 3-pole contactors in the UA range...are designed in modular construction.
- Main pole and auxiliary contact blocks: 3 main pole, without integrated auxiliary contacts, the installation of additional auxiliary contact blocks for front and side mounting is possible.
- Control circuit: AC operation with laminated magnetic circuit
- Accessories: A wide range of additional accessories is available.
This text is machine translated.
- Main pole and auxiliary contact blocks: 3 main pole, without integrated auxiliary contacts, the installation of additional auxiliary contact blocks for front and side mounting is possible.
- Control circuit: AC operation with laminated magnetic circuit
- Accessories: A wide range of additional accessories is available.
This text is machine translated.
