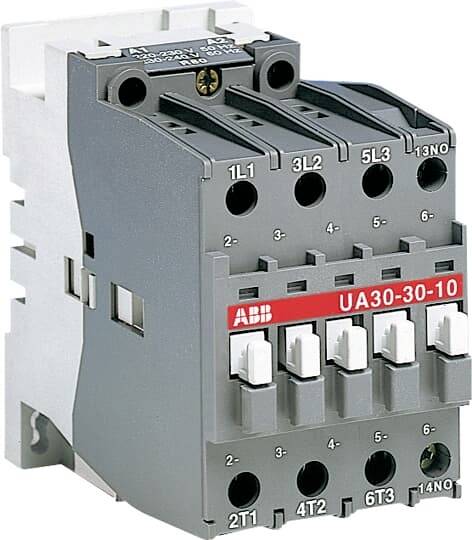

ABB UA30-30-10-88 Capacitor bank contactor 4 makers 1 pc(s)
EAN:
Part number:
Item no:
Product type
Capacitor bank contactor
No. of pins
3-pin
Connection
Screws
Type
UA30-30-10-88
Contact type
4 makers
Datasheet (PDF)
Technical specifications
- Product type
Capacitor bank contactor
- Type
UA30-30-10-88
- No. of pins
3-pin
- Contact type
4 makers
- Auxiliary contact type
1 maker
- Control voltage (min.)
230 V AC
- Control voltage (max.)
240 V AC
- Control voltage range
230 - 240 V AC
- Connection
Screws
- Content
1 pc(s)
3
0
1
0
230-240 V
240-260 V
Screw connection
27.5 kvar
AC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3105406 ABB UA30-30-10-88 Capacitor bank contactor 4 makers 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3105406 ABB UA30-30-10-88 Capacitor bank contactor 4 makers 1 pc(s)
Description
The 3-pin contactors UA30-30-10 for capacitor switching can be used in systems where the peak current reaches a maximum of 100 times the value of the nominal effective current. Their electrical lifespan is 100 000 switching cycles. The 3-pole contactors of the UA30 series...are designed in block design.
- Main pole and auxiliary contact blocks: 3 Main pole, with an integrated NO contact, the installation of additional auxiliary contact blocks for front and side mounting is possible.
- Control circuit: AC operation with laminated magnetic circuit
- Accessories: A wide range of additional accessories is available.
This text is machine translated.
- Main pole and auxiliary contact blocks: 3 Main pole, with an integrated NO contact, the installation of additional auxiliary contact blocks for front and side mounting is possible.
- Control circuit: AC operation with laminated magnetic circuit
- Accessories: A wide range of additional accessories is available.
This text is machine translated.
