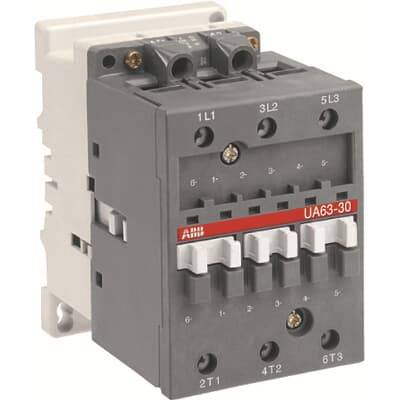

ABB UA63-30-00-80 Capacitor bank contactor 3 makers 1 pc(s)
EAN:
Part number:
Item no:
Product type
Capacitor bank contactor
No. of pins
3-pin
Connection
Screws
Type
UA63-30-00-80
Contact type
3 makers
Datasheet (PDF)
Technical specifications
- Product type
Capacitor bank contactor
- Type
UA63-30-00-80
- No. of pins
3-pin
- Contact type
3 makers
- Control voltage (min.)
220 V AC
- Control voltage (max.)
230 V AC
- Control voltage range
220 - 230 V AC
- Connection
Screws
- Width
70 mm
- Height
110 mm
- Depth
108 mm
- Dim
(W x H x D) 70 x 110 x 108 mm
- Content
1 pc(s)
3
0
0
0
220-230 V
230-240 V
Screw connection
43 kvar
AC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3105500 ABB UA63-30-00-80 Capacitor bank contactor 3 makers 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3105500 ABB UA63-30-00-80 Capacitor bank contactor 3 makers 1 pc(s)
Description
The 3-pin contactors UA63-30-00 for capacitor switching can be used in systems where the peak current reaches a maximum of 100 times the nominal effective current. Their electrical lifespan is 100 000 switching cycles. The 3-pole contactors in the UA range...are designed in modular construction.
- Main pole and auxiliary contact blocks: 3 main pole, without integrated auxiliary contacts, the installation of additional auxiliary contact blocks for front and side mounting is possible.
- Control circuit: AC operation with laminated magnetic circuit
- Accessories: A wide range of additional accessories is available.
This text is machine translated.
- Main pole and auxiliary contact blocks: 3 main pole, without integrated auxiliary contacts, the installation of additional auxiliary contact blocks for front and side mounting is possible.
- Control circuit: AC operation with laminated magnetic circuit
- Accessories: A wide range of additional accessories is available.
This text is machine translated.
