Name: ABB UA75-30-00-84 Capacitor bank contactor 3 makers 1 pc(s)
Brand: ABB
SKU: 3105530

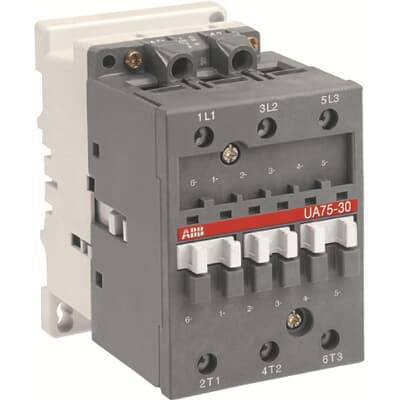

A grey electrical contactor by ABB, model UA75-30, showing electrical wiring connections.

Product type

Capacitor bank contactor

No. of pins

3-pin

Connection

Screws

Type

UA75-30-00-84

Contact type

3 makers

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Capacitor bank contactor

Type: UA75-30-00-84

No. of pins: 3-pin

Contact type: 3 makers

Auxiliary contact type: 3 makers

Control voltage (max.): 110 V AC

Control voltage range: 110 V AC (max)

Connection: Screws

Content: 1 pc(s)

: 3

: 0

: 0

: 0

: 110-120 V

: 110-120 V

: Screw connection

: 50 kvar

: AC

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3105530 ABB UA75-30-00-84 Capacitor bank contactor 3 makers 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3105530 ABB UA75-30-00-84 Capacitor bank contactor 3 makers 1 pc(s)

Description

The 3-pin contactors UA75-30-00 for capacitor switching can be used in systems where the peak current reaches a maximum of 100 times the nominal effective current. Their electrical lifespan is 100 000 switching cycles. The 3-pole contactors in the UA range...are designed in modular construction.
- Main pole and auxiliary contact blocks: 3 main pole, without integrated auxiliary contacts, the installation of additional auxiliary contact blocks for front and side mounting is possible.
- Control circuit: AC operation with laminated magnetic circuit
- Accessories: A wide range of additional accessories is available.

This text is machine translated.
