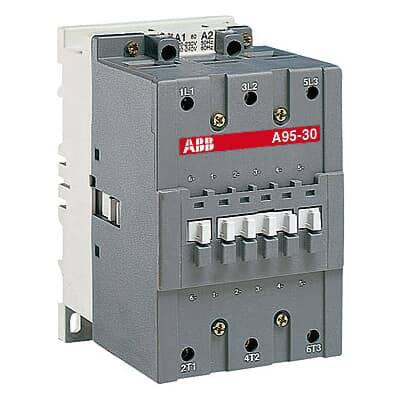

ABB UA95-30-00-84 Capacitor bank contactor 3 makers Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Capacitor bank contactor
No. of pins
3-pin
Packaging type
Piece
Type
UA95-30-00-84
Contact type
3 makers
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Capacitor bank contactor
- Type
UA95-30-00-84
- No. of pins
3-pin
- Contact type
3 makers
- Control voltage (min.)
110 V AC
- Control voltage (max.)
110 V AC
- Control voltage range
110 - 110 V AC
- Switching voltage (max.)
1000 V AC
- Width
90 mm
- Height
148 mm
- Depth
123.5 mm
- Dim
(W x H x D) 90 x 148 x 123.5 mm
- Content
1 pc(s)
3
0
0
0
110-110 V
110-120 V
Other
65 kvar
AC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3110904 ABB UA95-30-00-84 Capacitor bank contactor 3 makers Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3110904 ABB UA95-30-00-84 Capacitor bank contactor 3 makers Piece 1 pc(s)
Description
UA95: 3-pole contactors for capacitor circuit can be used in systems where the peak current reaches a maximum of 100 times the nominal effective current. Their electrical lifespan is 100 000 switching cycles. The 3-pole contactors in the UA range...are designed in modular construction.
- Main pole and auxiliary contact blocks: 3 main pole, without integrated auxiliary contacts, the installation of additional auxiliary contact blocks for front and side mounting is possible.
- Control circuit: AC operation with laminated magnetic circuit
- Accessories: A wide range of additional accessories is available.
This text is machine translated.
- Main pole and auxiliary contact blocks: 3 main pole, without integrated auxiliary contacts, the installation of additional auxiliary contact blocks for front and side mounting is possible.
- Control circuit: AC operation with laminated magnetic circuit
- Accessories: A wide range of additional accessories is available.
This text is machine translated.
