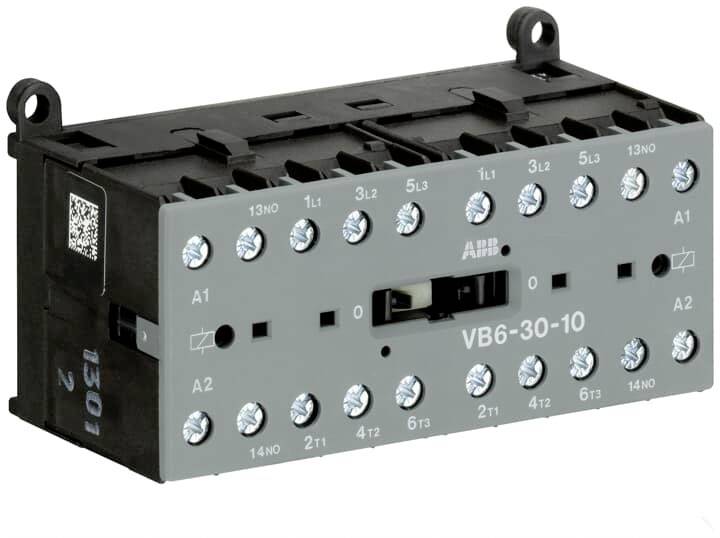

ABB VB6-30-10-80 Reversing contactor 3 makers 4 kW 220 V 8.5 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Reversing contactor
No. of pins
2-pin
Nominal voltage
220 V
Current load
8.5 A
Power
4 kW
Datasheet (PDF)
Technical specifications
- Product type
Reversing contactor
- Type
VB6-30-10-80
- No. of pins
2-pin
- Contact type
3 makers
- Auxiliary contact type
1 maker
- Nominal voltage
220 V
- Control voltage (min.)
220 V AC
- Control voltage (max.)
240 V AC
- Control voltage range
220 - 240 V AC
- Switching voltage (min.)
2.5 V DC
- Switching voltage (max.)
690 V AC
- Permanent current (max.)
9 A
- Current load
8.5 A
4 kW
- Mounting type
DIN rail
- Connection
Screws
IP20
- Width
96.2 mm
- Height
57.5 mm
- Depth
46.7 mm
- Dim
(W x H x D) 96.2 x 57.5 x 46.7 mm
- Content
1 pc(s)
96.2
Reversing contactor
57.5 mm
46.7 mm
4 kW
3
0
1
0
8.5 A
8.5 A
TRUE
220-240 V
220-240 V
0-0 V
AC
IP20
Screw connection
690-690 V
690-690 V
2.5-2.5 V
AC
1
1.491
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2324771 ABB VB6-30-10-80 Reversing contactor 3 makers 4 kW 220 V 8.5 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2324771 ABB VB6-30-10-80 Reversing contactor 3 makers 4 kW 220 V 8.5 A 1 pc(s)
Description
Small turning contactors VB/VBC 6 and VB/VBC 7 of 4 and 5.5 kW AC-3 (400 V) stand for a series with very small dimensions and with connection variants in screw, solder pin and flat plug technology. This means that the devices offer a very wide range of applications even under unfavorable space conditions. The mechanically locked reversing contactors switch power circuits of motors with clockwise and anti-clockwise rotation with their AC or DC control. Accessories that can be attached are extinguishing links as well as 2-pole auxiliary switches that can be plugged on the front and a reversing wiring.
This text is machine translated.
This text is machine translated.
