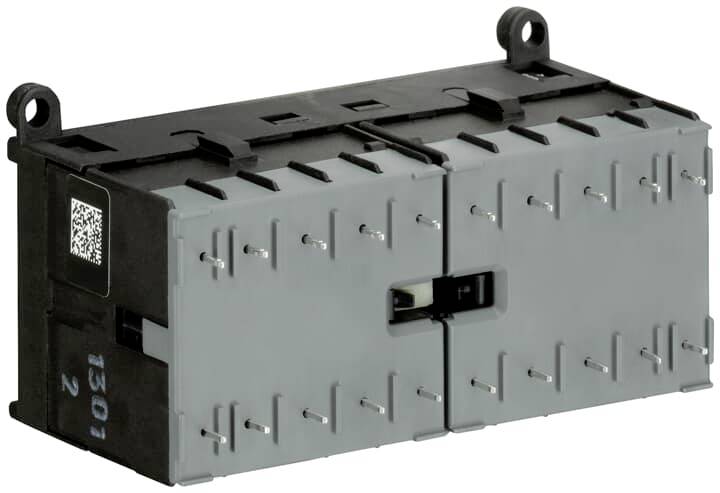

ABB VB7-30-10-P-85 Reversing contactor 3 makers 5.5 kW 1 pc(s)
EAN:
Part number:
Item no:
Product type
Reversing contactor
Power
5.5 kW
Connection
Solder pins
Type
VB7-30-10-P-85
Contact type
3 makers
Datasheet (PDF)
Technical specifications
- Product type
Reversing contactor
- Type
VB7-30-10-P-85
- Contact type
3 makers
- Control voltage (min.)
380 V AC
- Control voltage (max.)
415 V AC
- Control voltage range
380 - 415 V AC
- Permanent current (max.)
6 A
5.5 kW
- Connection
Solder pins
IP20
- Content
1 pc(s)
Reversing contactor
5.5 kW
3
0
12 A
6 A
TRUE
380-415 V
380-380 V
IP20
PCB connection
Other
AC
1
2.2371 kW
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3111812 ABB VB7-30-10-P-85 Reversing contactor 3 makers 5.5 kW 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3111812 ABB VB7-30-10-P-85 Reversing contactor 3 makers 5.5 kW 1 pc(s)
Description
Small reversing contactors VB/VBC 6 and VB/VBC 7 of 4 and 5.5 kW AC-3 (400 V) stand for a series with very small dimensions and with connection variants in screw, solder pin and flat plug technology. These devices offer a very wide range of usage possibilities, even under unfavorable conditions. With their AC or DC control, the mechanically locked reversing contactors switch power circuits of motors with right-hand and left-hand motion. Mountable accessories are quenching circuits and front attachable 2-pole auxiliary switches and a turning wiring.
