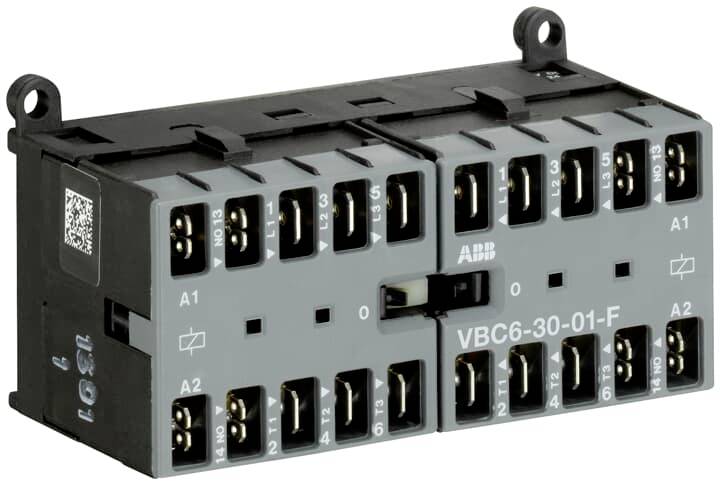

ABB VBC6-30-01-F-01 Reversing contactor 3 makers 4 kW + auxiliary contact Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Reversing contactor
Power
4 kW
Connection
CEE 7/16 CEE plug
Packaging type
Piece
Type
VBC6-30-01-F-01
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Reversing contactor
- Type
VBC6-30-01-F-01
- Contact type
3 makers
- Auxiliary contact type
3 makers
- Control voltage (max.)
24 V DC
- Control voltage range
24 V DC (max)
- Permanent current (max.)
6 A
4 kW
- Features
+ auxiliary contact
- Connection
CEE 7/16 CEE plug
IP20
- Content
1 pc(s)
Reversing contactor
4 kW
3
0
9 A
6 A
TRUE
24-24 V
IP20
Flat plug-in connection
Other
DC
1
1.4914 kW
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3111730 ABB VBC6-30-01-F-01 Reversing contactor 3 makers 4 kW + auxiliary contact Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3111730 ABB VBC6-30-01-F-01 Reversing contactor 3 makers 4 kW + auxiliary contact Piece 1 pc(s)
Description
Small reversing contactors VB/VBC 6 and VB/VBC 7 of 4 and 5.5 kW AC-3 (400 V) stand for a series with very small dimensions and with connection variants in screw, solder pin and flat plug technology. These devices offer a very wide range of usage possibilities, even under unfavorable conditions. With their AC or DC control, the mechanically locked reversing contactors switch power circuits of motors with right-hand and left-hand motion. Mountable accessories are quenching circuits and front attachable 2-pole auxiliary switches and a turning wiring.
