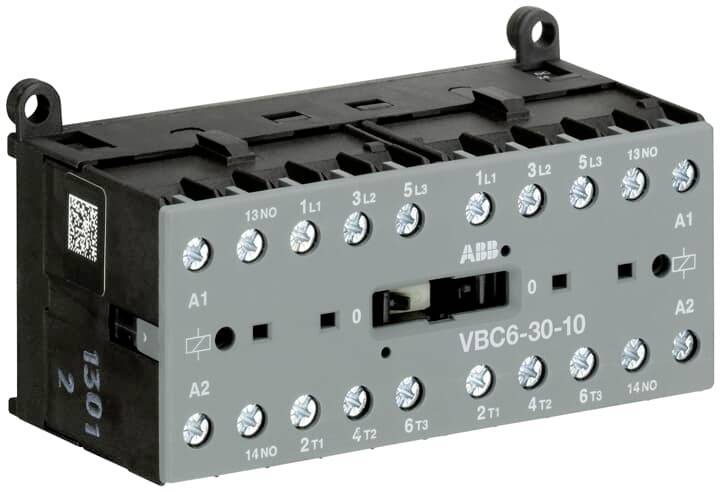

ABB VBC6-30-10-04 Reversing contactor 3 makers 4 kW + auxiliary contact Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Reversing contactor
No. of pins
2-pin
Power
4 kW
Connection
Screws
Packaging type
Piece
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Reversing contactor
- Type
VBC6-30-10-04
- Type
6
- No. of pins
2-pin
- Contact type
3 makers
- Auxiliary contact type
3 makers
- Control voltage (min.)
110 V DC
- Control voltage (max.)
125 V DC
- Control voltage range
110 - 125 V DC
- Switching voltage (max.)
400 V AC
- Max. switching capacity
4000 W
- Permanent current (max.)
6 A
4 kW
- Features
+ auxiliary contact
- Mounting type
Screw-fit
- Connection
Screws
IP20
- Content
1 pc(s)
Reversing contactor
4 kW
3
0
9 A
6 A
TRUE
110-125 V
IP20
Screw connection
Screw connection
DC
1
1.4914 kW
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3111722 ABB VBC6-30-10-04 Reversing contactor 3 makers 4 kW + auxiliary contact Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3111722 ABB VBC6-30-10-04 Reversing contactor 3 makers 4 kW + auxiliary contact Piece 1 pc(s)
Description
Small reversing contactors VB/VBC 6 and VB/VBC 7 of 4 and 5.5 kW AC-3 (400 V) stand for a series with very small dimensions and with connection variants in screw, solder pin and flat plug technology. These devices offer a very wide range of usage possibilities, even under unfavorable conditions. With their AC or DC control, the mechanically locked reversing contactors switch power circuits of motors with right-hand and left-hand motion. Mountable accessories are quenching circuits and front attachable 2-pole auxiliary switches and a turning wiring.
