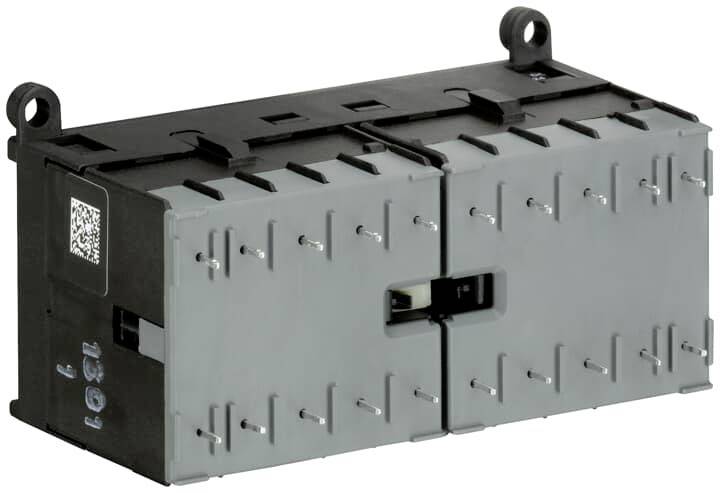

ABB VBC6A-30-10-P-2.4 Switch 8.5 A + auxiliary contact Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switch
No. of pins
2-pin
Current load
8.5 A
Connection
Screw terminal
Packaging type
Piece
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Switch
- Type
VBC6A-30-10-P-2.4
- No. of pins
2-pin
- Switching voltage (max.)
4 V AC
- Permanent current (max.)
8.5 A
- Current load
8.5 A
- Features
+ auxiliary contact
- Connection
Screw terminal
IP20
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2327736 ABB VBC6A-30-10-P-2.4 Switch 8.5 A + auxiliary contact Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2327736 ABB VBC6A-30-10-P-2.4 Switch 8.5 A + auxiliary contact Piece 1 pc(s)
Description
Small turning contactors VB/VBC 6 and VB/VBC 7 of 4 and 5.5 kW AC-3 (400 V) stand for a series with very small dimensions and with connection variants in screw, solder pin and flat plug technology. This means that the devices offer a very wide range of applications even under unfavorable space conditions. The mechanically locked reversing contactors switch power circuits of motors with clockwise and anti-clockwise rotation with their AC or DC control. Accessories that can be attached are extinguishing links as well as 2-pole auxiliary switches that can be plugged on the front and a reversing wiring.
