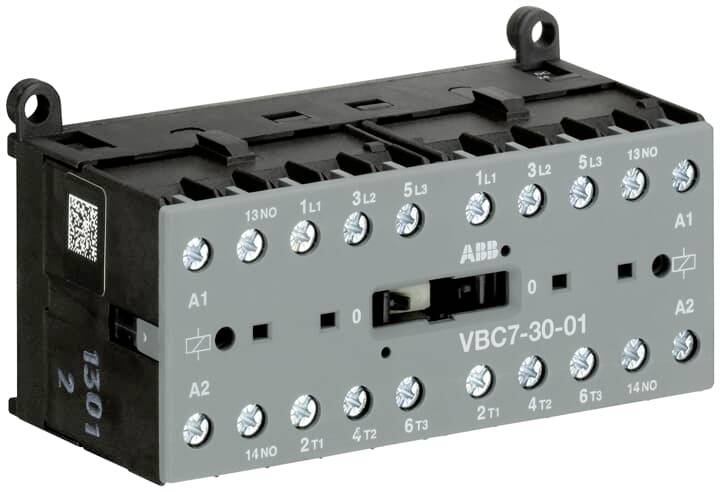

ABB VBC7-30-01-01 Reversing contactor 3 makers 5.5 kW 1 pc(s)
EAN:
Part number:
Item no:
Product type
Reversing contactor
Power
5.5 kW
Connection
Screws
Type
VBC7-30-01-01
Contact type
3 makers
Datasheet (PDF)
Technical specifications
- Product type
Reversing contactor
- Type
VBC7-30-01-01
- Contact type
3 makers
- Control voltage (max.)
24 V DC
- Control voltage range
24 V DC (max)
- Permanent current (max.)
6 A
5.5 kW
- Connection
Screws
IP20
- Content
1 pc(s)
96.2
Reversing contactor
57.5 mm
46.7 mm
5.5 kW
3
0
0
1
12 A
11.5 A
TRUE
0-0 V
0-0 V
24-24 V
IP20
Screw connection
Screw connection
690-690 V
690-690 V
DC
1
2.237
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3111914 ABB VBC7-30-01-01 Reversing contactor 3 makers 5.5 kW 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3111914 ABB VBC7-30-01-01 Reversing contactor 3 makers 5.5 kW 1 pc(s)
Description
Small reversing contactors VB/VBC 6 and VB/VBC 7 of 4 and 5.5 kW AC-3 (400 V) stand for a series with very small dimensions and with connection variants in screw, solder pin and flat plug technology. These devices offer a very wide range of usage possibilities, even under unfavorable conditions. With their AC or DC control, the mechanically locked reversing contactors switch power circuits of motors with right-hand and left-hand motion. Mountable accessories are quenching circuits and front attachable 2-pole auxiliary switches and a turning wiring.
