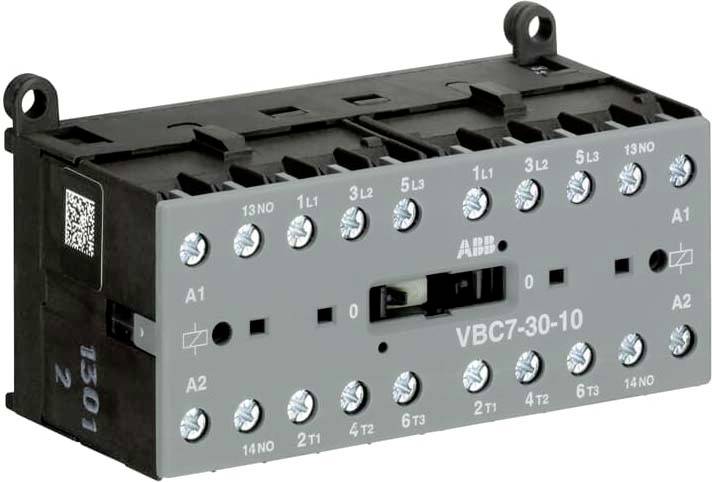

ABB VBC7-30-10-16 Reversing contactor 5.5 kW 12 A Piece 5 pc(s)
EAN:
Part number:
Item no:
Product type
Reversing contactor
No. of pins
2-pin
Current load
12 A
Power
5.5 kW
Connection
Screws
Technical specifications
- Packaging type
Piece
- Product type
Reversing contactor
- Type
VBC7-30-10-16
- No. of pins
2-pin
- Switching voltage (max.)
400 V AC
- Permanent current (max.)
12 A
- Current load
12 A
5.5 kW
- Connection
Screws
IP20
- Content
5 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3783063 ABB VBC7-30-10-16 Reversing contactor 5.5 kW 12 A Piece 5 pc(s)
Description
Small reversing contactors VB/VBC 6 and VB/VBC 7 of 4 and 5.5 kW AC-3 (400 V) stand for a series with very small dimensions and with connection variants in screw, solder pin and flat plug technology. These devices offer a very wide range of usage possibilities, even under unfavorable conditions. With their AC or DC control, the mechanically locked reversing contactors switch power circuits of motors with right-hand and left-hand motion. Mountable accessories are quenching circuits and front attachable 2-pole auxiliary switches and a turning wiring.
