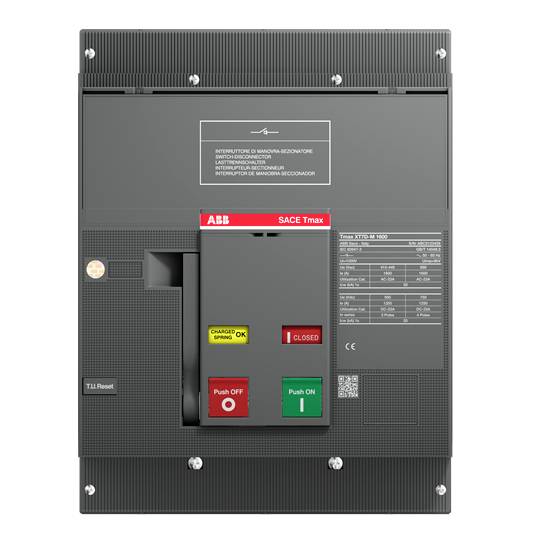

ABB XT7D M 1000 3P F F Circuit breaker 1 pc(s) Adjustment range (amperage): 1000 A (max) Piece
EAN:
Part number:
Item no:
Product type
Circuit breaker
Amperage adjustment range (max.)
1000 A
Connection
Bolt fixings
Packaging type
Piece
Type
XT7D M 1000 3P F F
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Circuit breaker
- Type
XT7D M 1000 3P F F
- Amperage adjustment range (max.)
1000 A
- Adjustment range (amperage)
1000 A (max)
- Current load
1000 A
- No. of pins
3-pin
- Connection
Bolt fixings
- Content
1 pc(s)
0
0
1000 A
3
0-690 V
IP20
0
0
TRUE
FALSE
Bolt connection
FALSE
Toggle
TRUE
FALSE
FALSE
20 kA
White
FALSE
FALSE
FALSE
TRUE
FALSE
690 V
TRUE
TRUE
Built-in device fixed built-in technique
1000 A
FALSE
4
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3109305 ABB XT7D M 1000 3P F F Circuit breaker 1 pc(s) Adjustment range (amperage): 1000 A (max) Piece
User & Safety Instructions
User & Safety Instructions 3109305 ABB XT7D M 1000 3P F F Circuit breaker 1 pc(s) Adjustment range (amperage): 1000 A (max) Piece
Description
Compact circuit breaker for system protection according to EN 60947-2 (DIN VDE 0660, part 101),
Compact circuit breakers in accordance with EN 60947-3 (DIN VDE 0660, part 107).
The Tmax XT compact power/switch disconnectors meet the different system requirements of DC and AC power supply systems. Tmax XT with thermo-magnetic or electronic triggers can be used to protect power distribution units, cables, generators and motors. Many of these circuit breakers can also be used in communication systems. Extensive connection kits, mechanical and electrical accessories as well as version conversion kits (pluggable/extendable) are available. Different fieldbus and IP communication protocols can be used. The installation process is simplified thanks to Bluetooth and Ekip connectivity for mobile devices. The connectivity integrated into the SACE Tmax XT series combines smartphones, tablets and PCs in real time with data analysis tools on the ABB AbilityTM cloud platform.
This text is machine translated.
Compact circuit breakers in accordance with EN 60947-3 (DIN VDE 0660, part 107).
The Tmax XT compact power/switch disconnectors meet the different system requirements of DC and AC power supply systems. Tmax XT with thermo-magnetic or electronic triggers can be used to protect power distribution units, cables, generators and motors. Many of these circuit breakers can also be used in communication systems. Extensive connection kits, mechanical and electrical accessories as well as version conversion kits (pluggable/extendable) are available. Different fieldbus and IP communication protocols can be used. The installation process is simplified thanks to Bluetooth and Ekip connectivity for mobile devices. The connectivity integrated into the SACE Tmax XT series combines smartphones, tablets and PCs in real time with data analysis tools on the ABB AbilityTM cloud platform.
This text is machine translated.
