ABL Sursum ABL GmbH E-Mobility EMSCT Cable current transformer Primary current 300 A Secondary current 5 A Line feed-thr
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Cable current transformer for EMS home EMSCT
- Input current (current) 300 A
- Output current 5 A
- Line feed-through diameter 24 mm
Technical specifications
- Product type
Cable current transformer
- Primary current
300 A
- Secondary current
5 A
2.5 W
- Line feed-through diameter
24 mm
- Accuracy class
1
- Type
ABL GmbH E-Mobility
- Output current
5 A
- Input current
300 A
- Line feed-through (W)
24 mm
- Line feed-through (H x W)
24 x 24 mm
- Line feed-through (H)
24 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3787030 ABL Sursum ABL GmbH E-Mobility EMSCT Cable current transformer Primary current 300 A Secondary current 5 A Line feed-thr
Security datasheet
Security datasheet 3787030 ABL Sursum ABL GmbH E-Mobility EMSCT Cable current transformer Primary current 300 A Secondary current 5 A Line feed-thr
Description

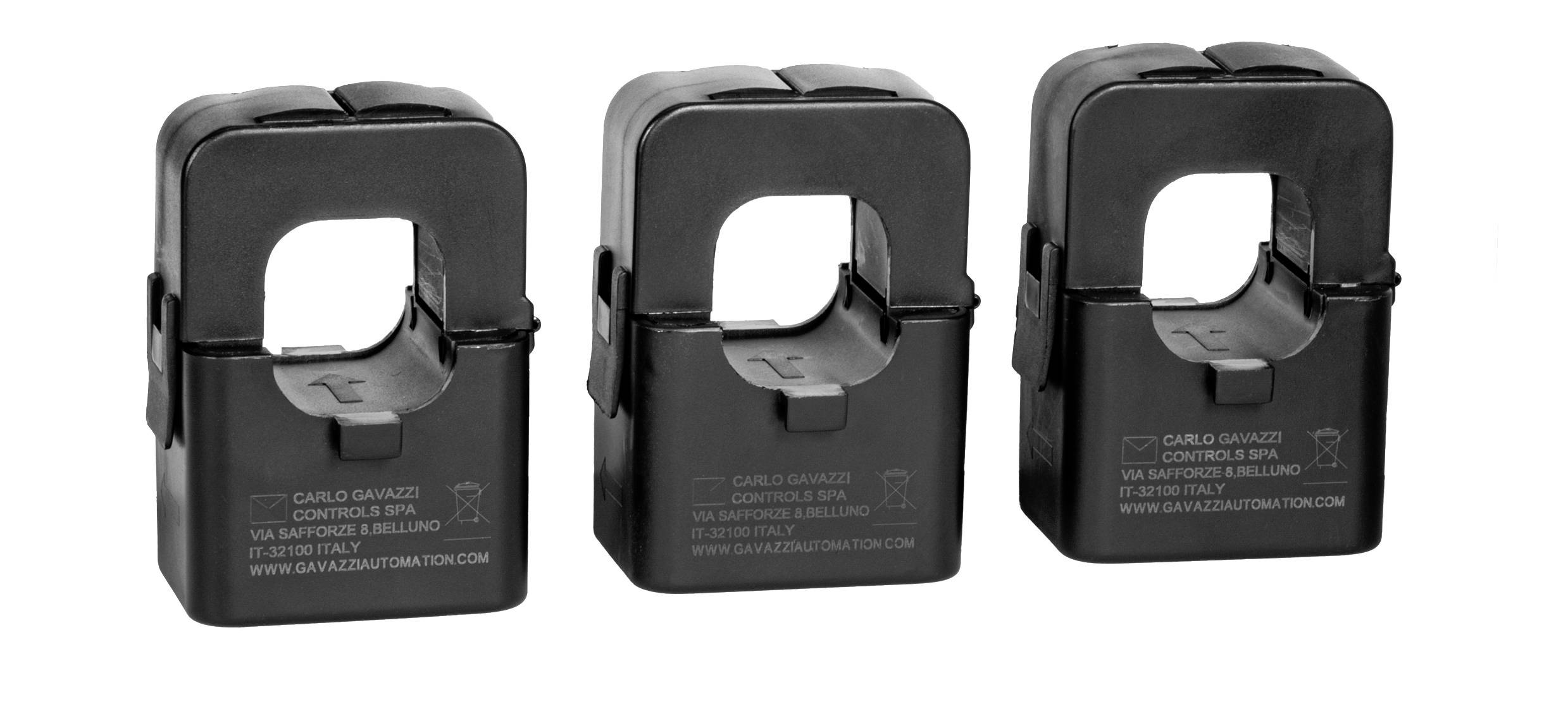

EMS CT is three cable conversion transformers for installation on live conductors in private installations. In conjunction with the energy and load management EMS home, the three cable converters serve for indirect measurement of the current energy consumption at the power supply point up to 300 A. On the basis of this measurement, EMS home can dynamically adjust the charging current and distribute it efficiently in single and group installations with up to six wall boxes eMH1. Because of the use of EMS CT a disconnection of the line is not necessary. The cabling with EMS home takes place via the integrated 0.5 m long lines of the cable conversion current transformer.
This text is machine translated.
