ABN ABNRS207E0031 ABNRS207E0031 Meter box Surface-mount No. of rows = 5 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Meter box
No. of rows
5
Mounting type
Surface-mount
Width
550 mm
Height
1100 mm
Technical specifications
- Product type
Meter box
- No. of rows
5
- Mounting type
Surface-mount
- Width
550 mm
- Height
1100 mm
- Dim
(W x H x D) 550 x 1100 x 210 mm
- Depth
210 mm
- Content
1 pc(s)
Surface mounted/recessed mounted/partially recessed mounted
White
550 mm
eHZ
1100 mm
210 mm
9016
FALSE
200 mm
63 A
2
1050 mm
500 mm
Steel
0
5
1
With bus bar 5-pole
IP44
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3459237 ABN ABNRS207E0031 ABNRS207E0031 Meter box Surface-mount No. of rows = 5 Content 1 pc(s)
Description

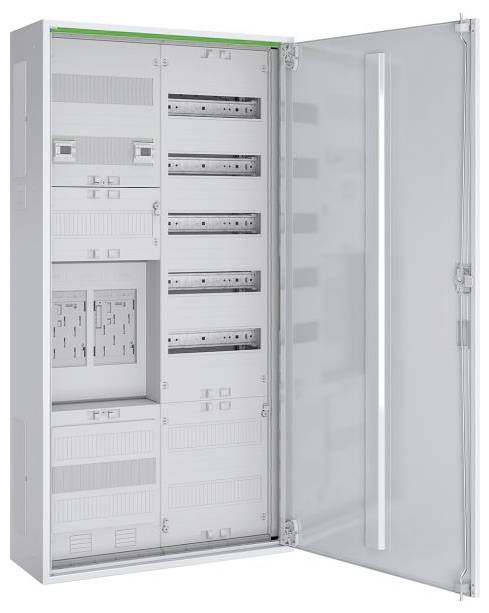

Complete cabinet consisting of: 1x eHZ cassette wired with OK and 5-pin main cable branch terminal, busbar system 5-pin, 5x connection terminals 16 mm², 1x counter reserve space, 1x distribution panel 5-row with APZ room incl. RJ45 interface
