ABN ABNRS307Z0171 ABNRS307Z0171 Meter box Busbar No. of rows = 5 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Meter box
No. of rows
5
Mounting type
Busbar
with PE and N terminals
Yes
Content
1 pc(s)
Technical specifications
- Product type
Meter box
- with PE and N terminals
Yes
- No. of rows
5
- Mounting type
Busbar
- Content
1 pc(s)
Surface mounted/recessed mounted/partially recessed mounted
White
800 mm
1-story
1100 mm
210 mm
9016
TRUE
200 mm
63 A
3
1050 mm
750 mm
Steel
0
5
1
With bus bar 5-pole
IP44
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3459188 ABN ABNRS307Z0171 ABNRS307Z0171 Meter box Busbar No. of rows = 5 Content 1 pc(s)
Description

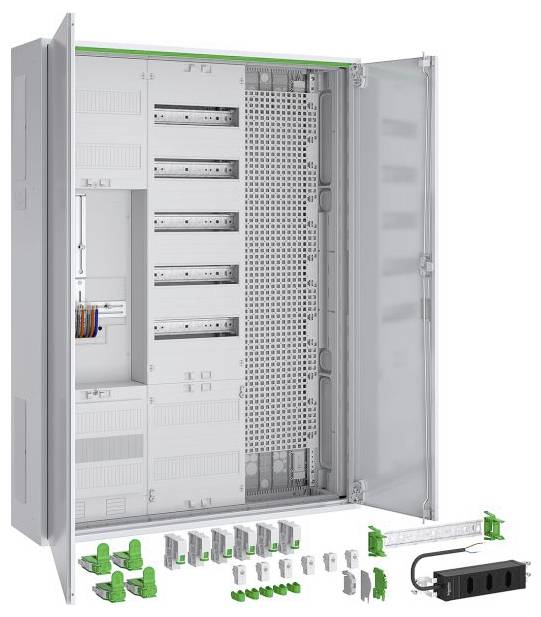

Complete cabinet consists of: 1x 3-point meter slot wired with 5-pin main line tap terminal and control line channel, busbar system 5-pin, 5x connection terminals 16 mm², no meter reserve space, 1x distribution panel 5-row with APZ-area incl. RJ45-interface, 1x multimedia field LexCom Home comprising: 6x modules, Keystones, S-One; 6x module holder, Fix RJ45; 5x cable holder, fixed cable; 4x device holder, fix box; 1x PE clamp, 2.5 mm²; 1 x 3-way socket with Euro inserts
