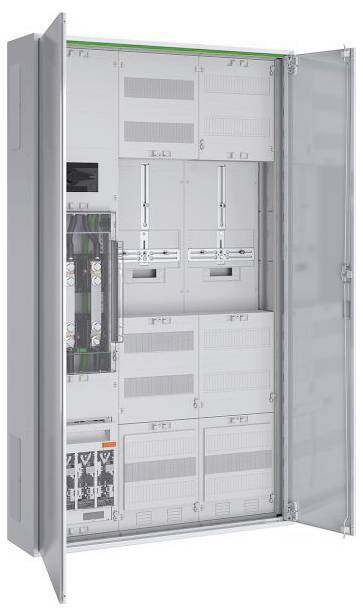

ABN ABNRS309X0002 ABNRS309X0002 Inverter cabinet Surface-mount Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Inverter cabinet
Mounting type
Surface-mount
Width
800 mm
Height
1400 mm
Depth
210 mm
Technical specifications
- Product type
Inverter cabinet
- with PE and N terminals
Yes
- Mounting type
Surface-mount
- Width
800 mm
- Height
1400 mm
- Dim
(W x H x D) 800 x 1400 x 210 mm
- Depth
210 mm
- Content
1 pc(s)
- Short-circuit withstand rating (Icw)
25 kA
Surface mounted (plaster)
White
800 mm
1-story
1400 mm
210 mm
9016
FALSE
200 mm
200 A
3
1350 mm
750 mm
Steel
0
0
2
With bus bar 5-pole
IP44
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3459330 ABN ABNRS309X0002 ABNRS309X0002 Inverter cabinet Surface-mount Content 1 pc(s)
Description
Converter measuring cabinet 200 A according to continuous current FNN Standard consisting of: Meter cabinet insulated in IP44, 3x NAR with 40 mm busbar system 2x12x5 mm fitted with NH1 isolator, 4x busbar terminal 120 mm², 1x busbar terminal 70 mm², 1x converter module WXH 250x450 mm with transparent cover, 3x converter flap design A with 30x5x170 mm, 1x AAR BxH 250x450 mm with 3-pin 250 A circuit breakers and terminal for N and PE, 1x additional transformer compartment BxH 250x300 mm 24 TE equipped with voltage path fuses 4x LS 1p B10 25kA and converter circuit breakers according to FNN standard, 1x 450-point counter space 450 mm, 1x 3-point FRE-place 3 mm, 1x APZ space 300 mm with RJ45 interface
