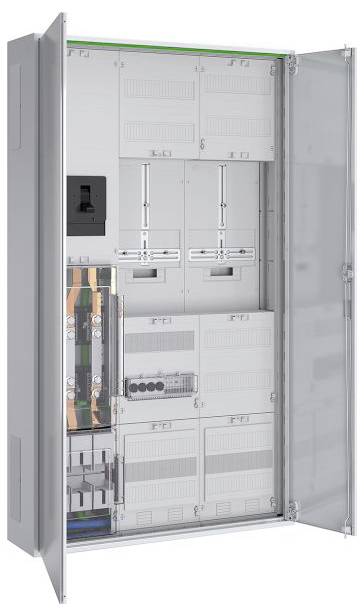

ABN ABNRS309X0553 ABNRS309X0553 Inverter cabinet Wall No. of partitions = 24 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Inverter cabinet
No. of partitions
24
Mounting type
Wall
with PE and N terminals
Yes
Content
1 pc(s)
Technical specifications
- Product type
Inverter cabinet
- No. of partitions
24
- with PE and N terminals
Yes
- Mounting type
Wall
- Content
1 pc(s)
Surface mounted (plaster)
White
800 mm
1-story
1400 mm
210 mm
9016
FALSE
200 mm
250 A
3
1350 mm
750 mm
Plastic
0
0
2
With bus bar 5-pole
IP44
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3459340 ABN ABNRS309X0553 ABNRS309X0553 Inverter cabinet Wall No. of partitions = 24 Content 1 pc(s)
Description
Transformer measuring cabinet 250 A continuous current according to TAB Central Germany consisting of: Meter cabinet insulated IP44, 3x NAR with 40 mm busbar 2x12x5 mm fitted with NH2 lower section with transparent cover and N/PE connection, 4x busbar terminal 185 mm², 1x busbar terminal 120 mm², 1x converter module BXH 250x450 mm with transparent cover, 3x converter latch design A with 30x5x170 mm 1x AAR with switch disconnectors 3-pin 400 A and terminal for N and PE, 1x converter additional room BxH 250x300 mm 24 TE equipped with voltage path fuses 1x D01 3-pin, control fuse 1x D01 1-pin and converter circuit terminals according to TAB Medium voltage, 1x 3-point counter space 450 mm, 1x 3-point FRE-place 450 mm, 1x APZ-space 300 mm with RJ45 interface
