ABN ZSK071603PA Counter mounting terminal DS 63A 7-pin VDE with plug pins and sealing cover Meter plug-in terminal 1 pc(
EAN:
Part number:
Item no:
Product type
Meter plug-in terminal
Content
1 pc(s)
Nominal current
63 A
Nominal voltage
400 V
Colour
Grey
Technical specifications
- Product type
Meter plug-in terminal
- Content
1 pc(s)
63 A
400 V
Grey
7
7-7 mm
TRUE
4-16 mm²
4-25 mm²
16-16 mm²
TRUE
TRUE
FALSE
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3461163 ABN ZSK071603PA Counter mounting terminal DS 63A 7-pin VDE with plug pins and sealing cover Meter plug-in terminal 1 pc(
Description

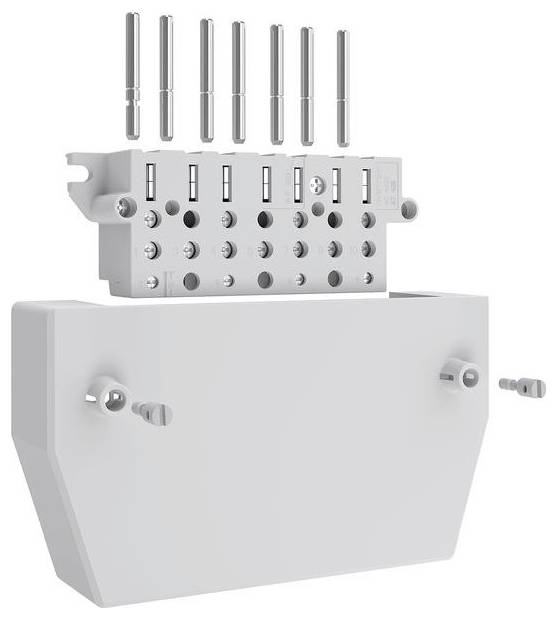

Meter plug-in terminal block with pins and terminal cover for 3-phase, tested according to DIN VDE 0603-3-3, for the screw-less exchange from household reference counter (63 A) in 3-point mounting, terminal cross-section up to 16 mm², control cable tapping per phase and N-terminal, set with 7 contact pins with locking N-pin 6x 45 mm and 1x 45 mm, Lead sealable and with contact protection cover on dismounted 3-phase alternating current meter
