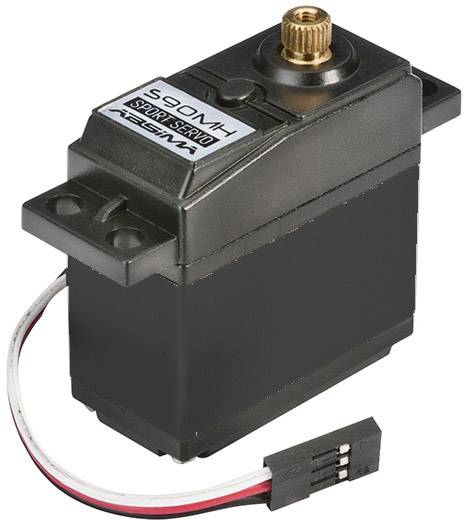

Absima Standard servo S90MH Analogue servo Gear box material: Metal Connector system: JR
EAN:
Part number:
Item no:
Highlights & Details
Servo S90MH 9 kg 25 Z
- Metal drive
- 9.5 kg actuating force
- Supported by ball bearings
- This text is machine translated.
Technical specifications
- Product type
Standard servo
- Dim
(L x W x H) 40.6 x 20.5 x 40.8 mm
- Length
40.6 mm
- Width
20.5 mm
- Height
40.8 mm
- Voltage
Low
- Weight
56 g
- Servo torque (4.8 V)
95 Ncm
- Actuation time at 4.8 V
0.16 s (60°)°
- Gear box
Metal
- Type of bearing
Double ball bearing
- Servo technology
Analogue servo
- Connector system
JR
- Operating voltage
4.8 - 6.6 V
- Max. operating voltage
6.6 V
- Min. operating voltage
4.8 V
- Manufacturer part #
2030004
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1677458 Absima Standard servo S90MH Analogue servo Gear box material: Metal Connector system: JR
Description
Features
- Ring gear 25 teeth
Scope of delivery
- Servo
- Servo horns
- Fasteners
