Buy Absima Thrust B-Spec V2 35T 2100020V2 Turns: 35 Model car brushed motor kit 1:10

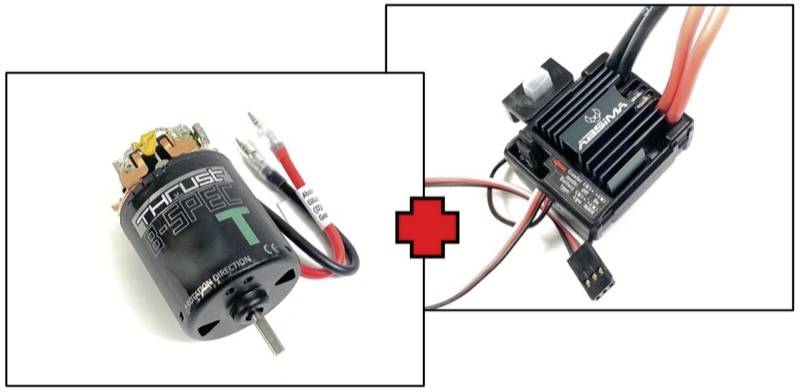

'Brushless Motor' and 'ESC Control' displayed side by side, connected by a red plus sign. Shows components of an RC vehicle.

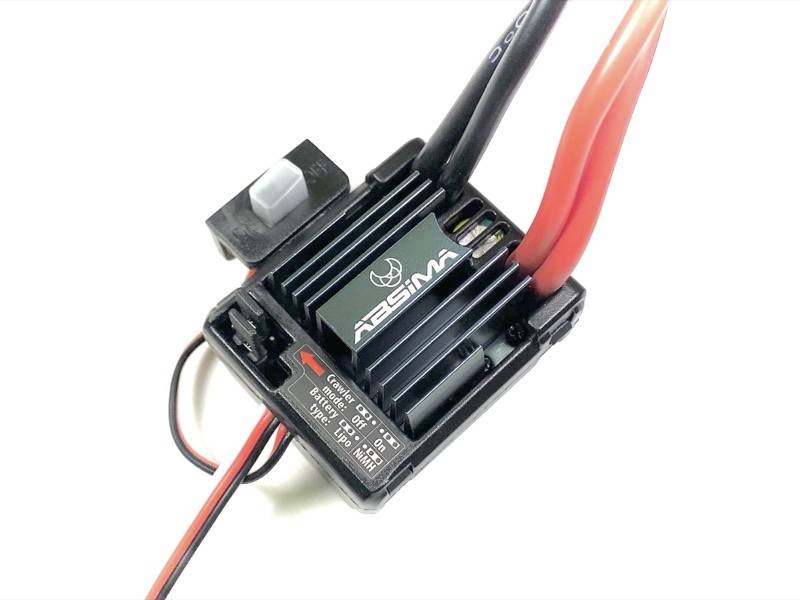

An electronic controller labelled 'ARENA', with multiple cable connections and electronic components.

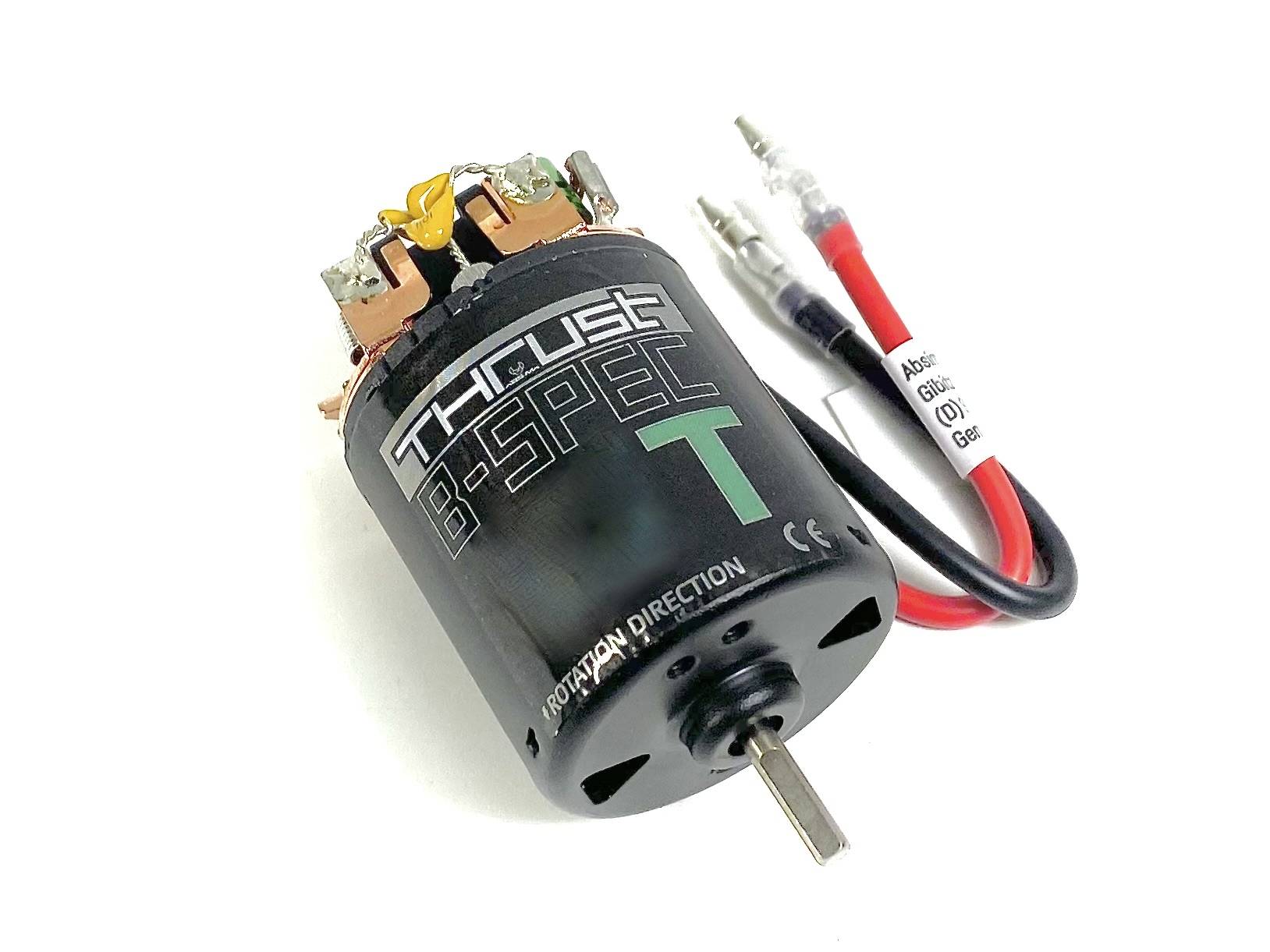

Brushless electric motor with the inscription 'Thrust B-Spec T'. Two cables with connectors are visible.

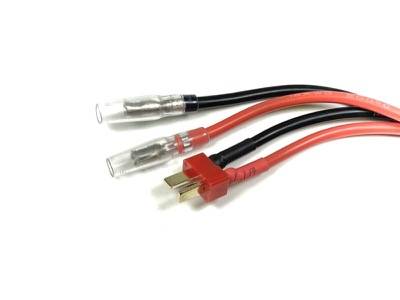

'Two red and one black cable with connectors that can be mounted in an electrical circuit, on a white background.'

1/4

Unavailable

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

1:10 Brushed "Thrust B Spec V2" 35T Crawler Motor & 80A ESC Combo Set

"ALL-IN-ONE" BRUSHED DRIVE CONTROLLER - an ESC suitable for all vehicle types (Crawler, Off-road, On-road, Boat)
Programmable via jumper and separately available programming card (Art. 2110061)
2S LiPo operation recommended
Motor is fully soldered – plug-n-play

Technical specifications

Continuous/short-term load: 80A/320A
Resistance 0.0014 ohms
Suitable motor types: Brushed standard motors
Battery recommendation: 2S LiPo / 6 cells NiMH
BEC 6.0V/5A
Motor Limit 2S LiPo/5-6 cells NiMH: ≥ 11T or <25.000U/Min
Dimension: 41.5 x 35 x 29.5 mm
T-plug connector system
Weight 63.4g.
Programmable speed controller (via programming card): Initial Start Force: 5%* / 13% / 21% / 29%
Low V cut-off (undervoltage protection): 3.1V* / 3.4V / Off
Crawler Setup - Initial Drag Brake (motor brake): 100%* / 90% / 80% / 70%
Standard Setup - Max Brake Force: 50%* / 100% / 75% / 25%
Max Reverse Force: 50%* / 75% / 100%
Start mode (punch): Medium* / Strong / soft
Features B-Spec engine : 35 turns
Idle speed 12,800 rpm
Output capacity: 85W
Operating voltage 7.2 V
Design size 540
Motor shaft: Length 12.3mm, Ø 3.18mm
Motor size: Length 53.2 mm, Ø 35.7 mm
Ball bearings 2
Weight 165g

Product type: Model car brushed motor kit

Output power: 85 W

Scale: 1:10

No. of LiPo cells: 2 - 6

No. of NiCd/NiMH batteries: 5 - 6

Shaft Ø: 3.18 mm

Turns: 35

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3089175 Absima Thrust B-Spec V2 35T 2100020V2 Turns: 35 Model car brushed motor kit 1:10

Description

The Absima Thrust B Spec series stands for excellent reliability and performance. The Thrust B Spec set is tailor-made for quality-conscious beginners and hobby enthusiasts with special requirements. Installation and operation do not require any great basic knowledge and are therefore very easy to handle. Absima B spec. Power in a new generation.

This text is machine translated.

Features

Brushed drive controller ALL-IN-ONE" : Water and dust proof - suitable for all weather conditions (Clean and dry the ESC after each use to avoid corrosion)
Developed especially for BRUSHED RC cars and crawlers for excellent acceleration and sensitive driving experience
Low internal resistance and excellent heat dissipation
Several protection functions such as low voltage cut-off for LiPo and NiMH rechargeable batteries, ESC overheating protection and protection from signal loss
Easy to program with jumper and programming card in pocket format (separately available - art. 2110061)
