Absima Thrust B-Spec V2 80T 2100019V2 Turns: 80 Model car brushed motor kit 1:10
EAN:
Part number:
Item no:
Highlights & Details

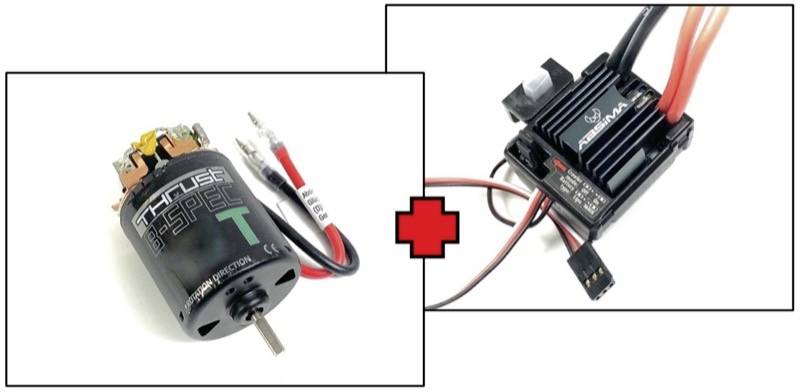

1:10 Brushed "Thrust B Spec V2" 80T Truck Motor & 80A ESC Combo Set
- "ALL-IN-ONE" BRUSHED DRIVE CONTROLLER - an ESC suitable for all vehicle types (Crawler, Off-road, On-road, Boat)
- Programmable via jumper and separately available programming card (Art. 2110061)
- 2S LiPo operation recommended
- Motor is fully soldered – plug-n-play
Technical specifications
- Continuous/short-term load: 80A/320A
- Resistance 0.0014 ohms
- Suitable motor types: Brushed standard motors
- Battery recommendation: 2S LiPo / 6 cells NiMH
- BEC 6.0V/5A
- Motor Limit 2S LiPo/5-6 cells NiMH: ≥ 11T or <25.000U/Min
- Dimension: 41.5 x 35 x 29.5 mm
- T-plug connector system
- Weight 63.4g.
- Programmable speed controller (via programming card): Initial Start Force: 5%* / 13% / 21% / 29%
- Low V cut-off (undervoltage protection): 3.1V* / 3.4V / Off
- Crawler Setup - Initial Drag Brake (motor brake): 100%* / 90% / 80% / 70%
- Standard Setup - Max Brake Force: 50%* / 100% / 75% / 25%
- Max Reverse Force: 50%* / 75% / 100%
- Start mode (punch): Medium* / Strong / soft

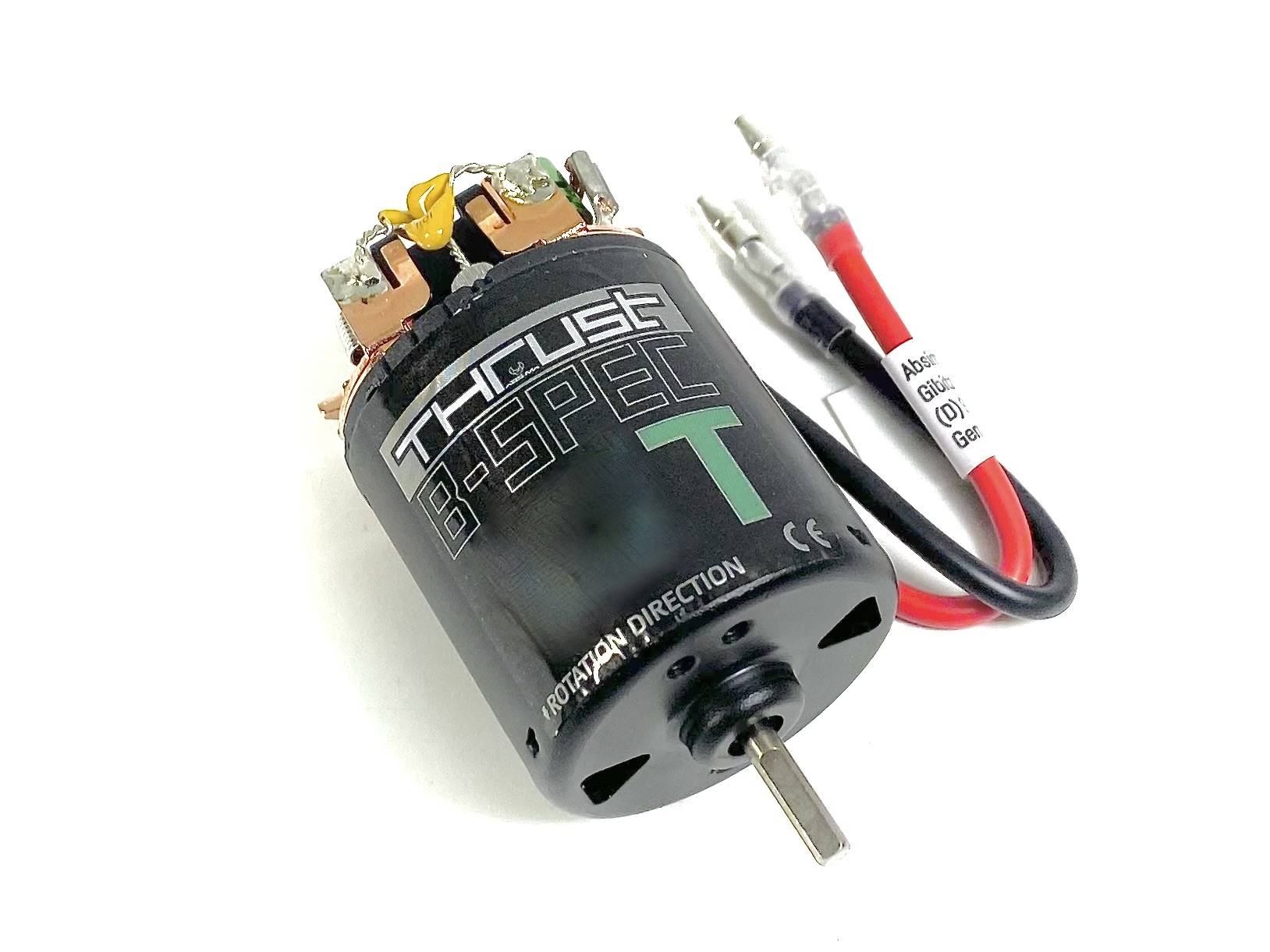

- Features B-Spec engine : 80 turns
- Idle speed 5,300 rpm
- 80W Output capacity
- Operating voltage 7.2 V
- Design size 540
- Motor shaft: Length 12.3mm, Ø 3.18mm
- Motor size: Length 53.2 mm, Ø 35.7 mm
- Ball bearings 2
- Weight 165g
- Product type
Model car brushed motor kit
- Output power
90 W
- Scale
1:10
- No. of LiPo cells
2 - 6
- No. of NiCd/NiMH batteries
5 - 6
- Shaft Ø
3.18 mm
- Turns
80
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3089174 Absima Thrust B-Spec V2 80T 2100019V2 Turns: 80 Model car brushed motor kit 1:10
Description
The Absima Thrust B Spec series stands for excellent reliability and performance. The Thrust B Spec set is tailor-made for quality-conscious beginners and hobby enthusiasts with special requirements. Installation and operation do not require any great basic knowledge and are therefore very easy to handle. Absima B spec. Power in a new generation.
This text is machine translated.
This text is machine translated.
Features

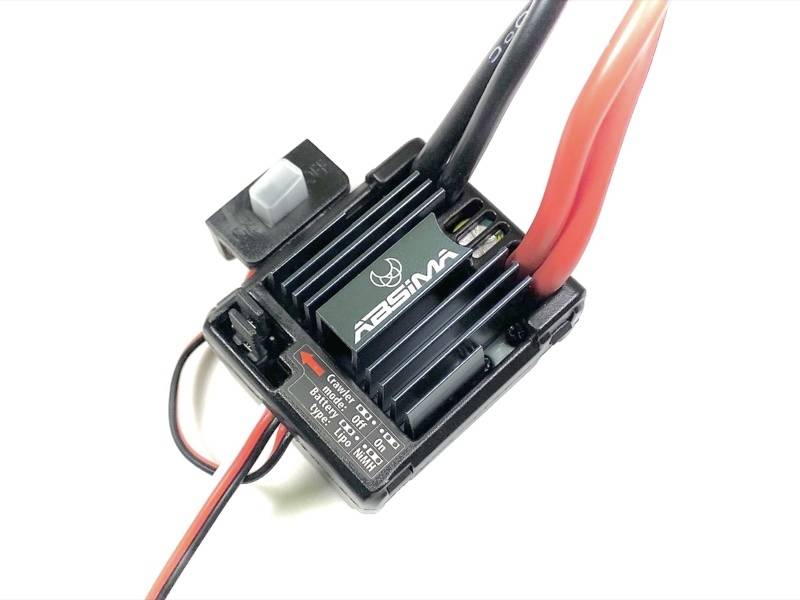

- Brushed drive controller ALL-IN-ONE" : Water and dust proof - suitable for all weather conditions (Clean and dry the ESC after each use to avoid corrosion)
- Developed especially for BRUSHED RC cars and crawlers for excellent acceleration and sensitive driving experience
- Low internal resistance and excellent heat dissipation
- Several protection functions such as low voltage cut-off for LiPo and NiMH rechargeable batteries, ESC overheating protection and protection from signal loss
- Easy to program with jumper and programming card in pocket format (separately available - art. 2110061)
Scope of delivery
- ALL IN ONE Brushed drive controller
- Thrust B Spec motor
- Adhesive pad for speed controller
- User manual
Hints
Combined drive for all models with an electric motor of size 540 (motor shaft: Ø 3.18mm)
