Buy ABUS ABUS CCTV TVAC35510 13.8V Leistungsnetzteil 3A TVAC35510 PSU

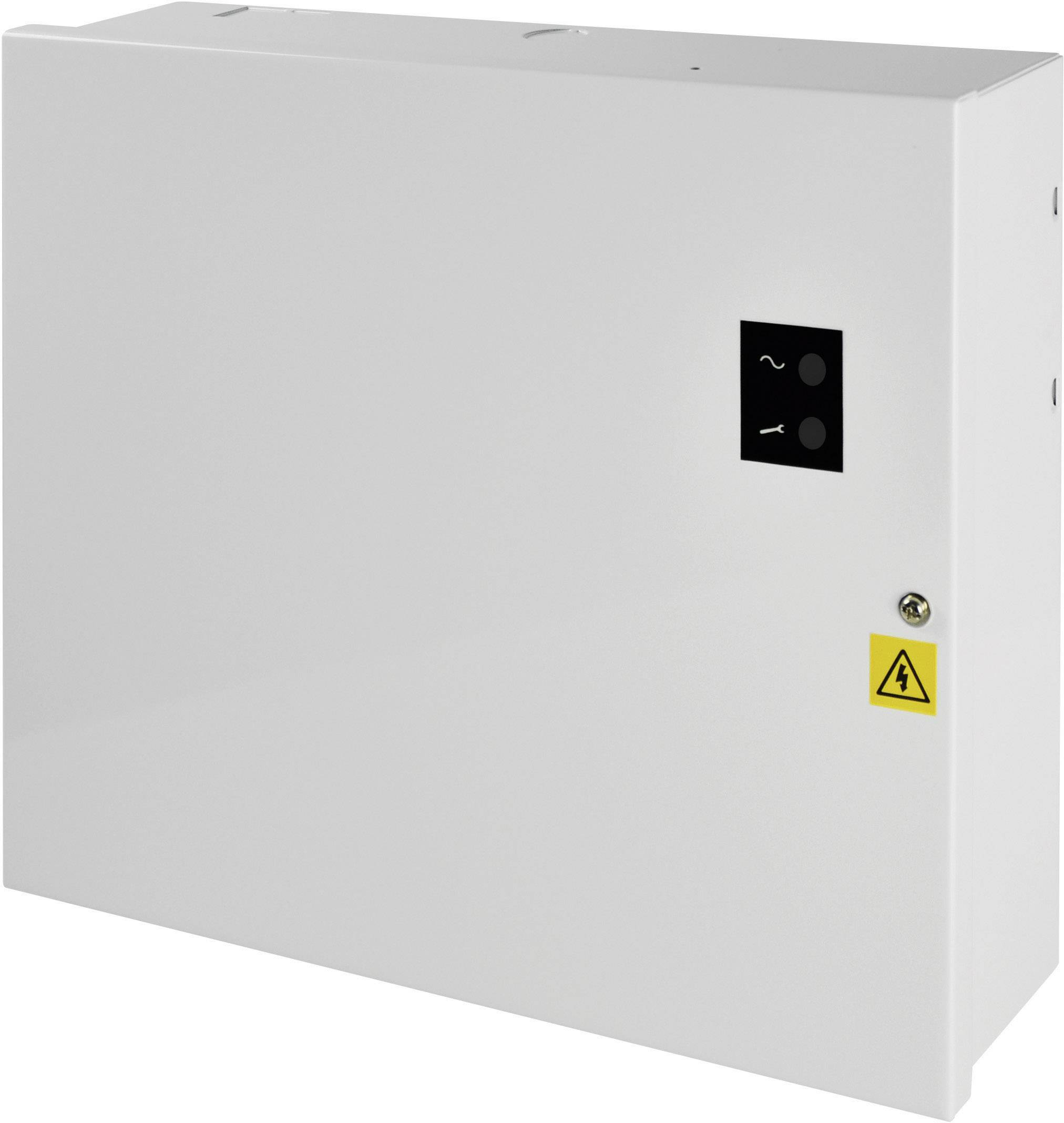

A white electrical control cabinet with two control elements and a warning symbol for electrical hazards.

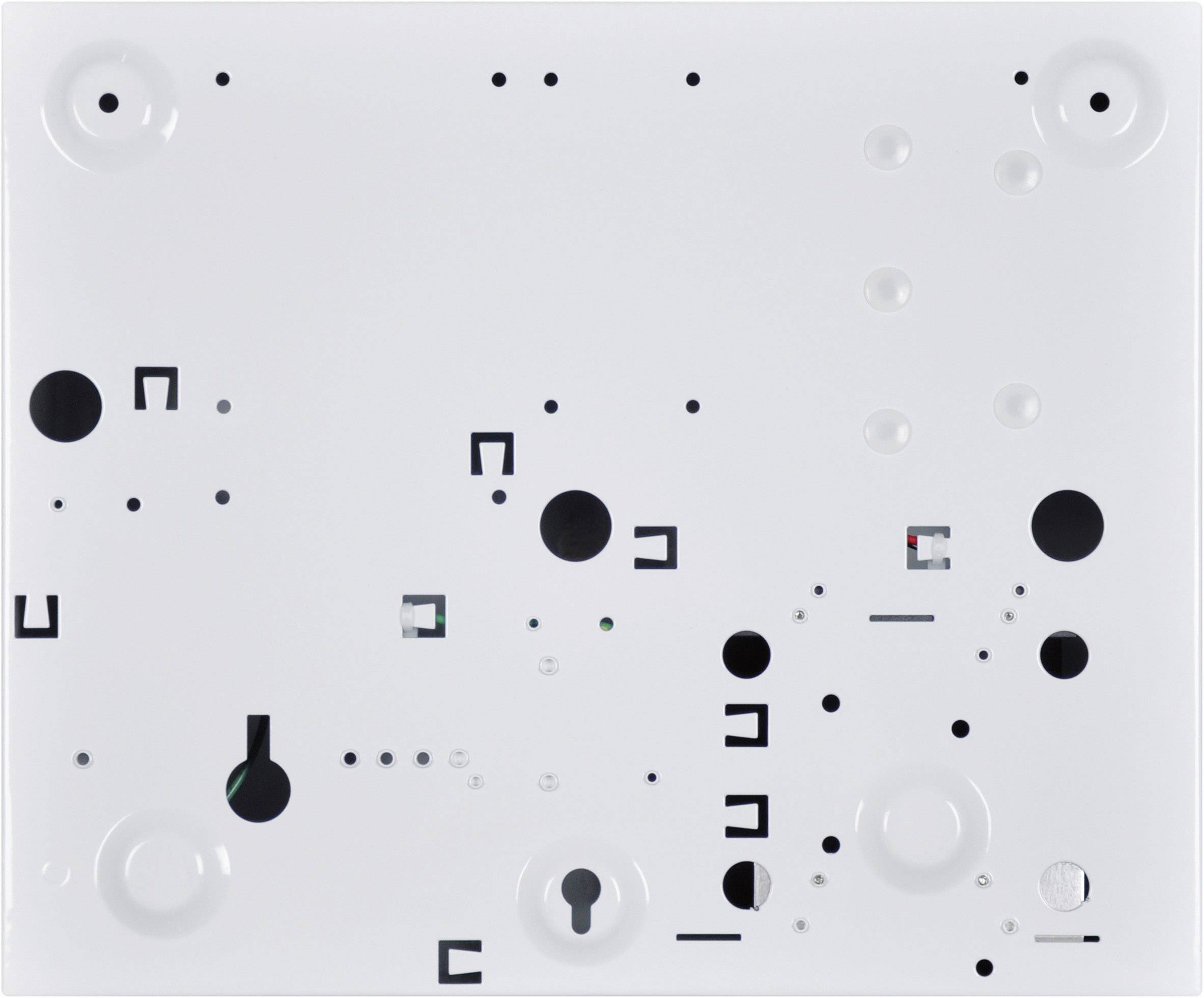

A white surface with black squares and circles in various sizes and arrangements. The shapes appear randomly distributed.

1/2

Fast track dispatch on Wed, 23 Sep

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 113.44 / piece)

€ 113.44

plus VAT.

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Power supply 230 V, 13.8V, 3A

Regulated output signal of 13.8 V/DC
LED-control display for mains and fuse
Electronic overload protection

Technical specifications

Nominal current 3.0 A
Sabotage monitoring: Cover switch

Product type: PSU

Outputs: 8 x F3.15 A, 20 mm

Weight: 3.26 kg

Width: 338 mm

Height: 281 mm

Depth: 86 mm

Output voltage: 13.4 - 14.2 V/DC with network operation · 10.0 - 12.3 V/DC with battery operation

Operating voltage: 230 V AC

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 754081 ABUS ABUS CCTV TVAC35510 13.8V Leistungsnetzteil 3A TVAC35510 PSU

Description

The CCTV Power supply 230 V AC is transformed into 13.8 VDC. It is thus ideally suited as a central supply station for video surveillance systems. Eight separate connectors are available on the device. The service works with a power supply with 230 VAC line voltage and also with a 12V/7Ah back-up battery (75 14 36). One battery charging circuitry is integrated in a rugged metal housing of the CCTV power supply unit. The output current (rated current) is 3 A. This switching power supply has a low power consumption and high efficiency. The power supply is intended for installation in the interior. A lid switch is used to monitor the unit and protect against possible sabotage. Pre-punched openings allow individual openings of the housing for ca lean cable routing. The LED-control display informs you about the state of the power supply. The 8 outputs are individually protected against overload and short circuit.
